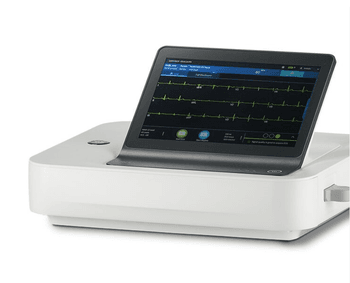

GE HealthCare MAC 7 Resting ECG
GE HealthCare · Model MAC 7 Resting ECG
Intuitive User Experience Touchscreen Interface: Streamlined workflow with fewer steps for ECG acquisition Enhanced Hookup Advisor™: Guides accurate lead placement for optimal signal quality Smart Lead Technology: Automatically detects newly connected patients Auto-ECG (Optional): Instantly captures the first clean, high-quality ECG Reduced Repeat Exams: Ensures consistent, high-quality ECG results Advanced Connectivity & Integration Bidirectional Communication: Integrates with MUSE™, CardioSoft™, EMR, and cardiology systems Multi-Format Data Export: Supports DICOM, HL7, PDF, and XML formats Seamless Workflow Integration: Enables efficient transfer of patient data, orders, and results Scalable Network Connectivity: Designed for enterprise-level healthcare environments Clinically Proven 12SL™ Analysis Validated Algorithm: Backed by over 200 scientific references Improved Diagnostic Accuracy: Enhanced detection of LVH and acute myocardial infarction Gender & Pediatric-Specific Interpretation: Tailored insights for diverse patient populations ACS Detection Tools: Increased sensitivity for acute coronary syndromes Secure by Design Data Encryption & Authentication: Protects patient information with secure login protocols (LDAP) Cybersecurity Monitoring: Continuous threat detection and system updates Secure Network Communication: Connects only to trusted devices and systems Activity Logging: Tracks user access and network interactions for compliance Mobility & Infection Control Compact & Lightweight Design: Smaller footprint for crowded clinical environments Easy-Clean Surfaces: Supports infection prevention and control standards Improved Maneuverability: Lightweight build for easy transport Flexible Storage Options: Expandable bins and accessory holders Ergonomic Design: Accommodates users of varying heights (Generated by AI)
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Noisy ECG / lead-off
HighSymptoms: Baseline wander, muscle / AC noise, "lead fail", poor 12-lead quality.
Root cause: Poor skin prep, dried or lifting electrodes, or a worn patient cable / lead set.
Will not acquire / analyse
MediumSymptoms: Acquisition hangs, no interpretation, or a self-test failure.
Root cause: Acquisition-module fault or a software issue.
Printer fault
MediumSymptoms: No or faint report, paper jam.
Root cause: Thermal print head or paper handling.
Battery / power fault
MediumSymptoms: Short battery run time, will not hold charge.
Root cause: Aged battery.
Connectivity / order-and-results fault
LowSymptoms: ECGs will not transmit to MUSE / the EMR, orders not received.
Root cause: Wi-Fi / network configuration or the communication module.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Patient cable / 10-lead set
Class Frequent wear itemRel. cost $$R&R Easy
Acquisition module
Class Major service partRel. cost $$$R&R Moderate
Thermal print head / paper
Class Periodic replacementRel. cost $R&R Fairly easy
Battery
Class Periodic replacementRel. cost $$R&R Fairly easy
Wi-Fi / communication module
Class Major service partRel. cost $$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Patient cable / 10-lead set | Frequent wear item | $$ | Easy |
| Acquisition module | Major service part | $$$ | Moderate |
| Thermal print head / paper | Periodic replacement | $ | Fairly easy |
| Battery | Periodic replacement | $$ | Fairly easy |
| Wi-Fi / communication module | Major service part | $$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Noisy ECG
- Re-prep the skin and fit fresh electrodes.
- Secure the lead wires and route away from AC sources.
- Swap in a known-good patient cable / lead set.
- Check the acquisition module connection.
- Confirm a clean 12-lead.
Symptom: Will not transmit
- Confirm the Wi-Fi / network settings and signal.
- Check the MUSE / EMR destination configuration.
- Send a test ECG.
- Reboot the cart.
- Escalate a persistent communication fault.
