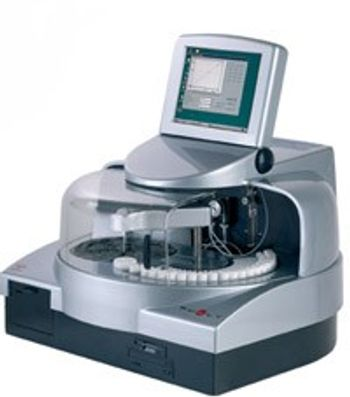

Biochemical Systems FULLY
Biochemical Systems · Model FULLY
• The particular design of the reagent bottle have been developed in order to avoid reagent losses. • 20 position reagent tray to miximize the number of test/sample at a time • Flexibility to run both single and two reagent chemistries • Open system that enables the programming of an unlimited number of techniques • The common shape of reaction wells and cups could be easily found in the local market • Programmable washing cycles between samples and tests for minimizing carry-over • Analysis of up to 54 samples at a time for walkaway convenience • Auto-rerun with pre-diluition • Proven and high technique will assure accurate measuring system and easy maintenance • 18 ul flow cell volume for economical running costs • Auto-level sensing • Built in high performance PC computer • Peltier controlled flow cell temperature • Washing and Waste tanks level sensors
Key tips
- ·Run QC controls before trusting any repair - an analyzer that passes self-test can still report clinically wrong results.
- ·Rule out a reagent lot change before opening the instrument - it can look exactly like a hardware fault.
- ·Centrifuge rotors have a hard retirement age/cycle limit regardless of visible condition - don't eyeball it.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Sample probe / pipette clog
MediumSymptoms: Aspiration error, short sample, carryover.
Root cause: Clot/crystal obstruction.
Centrifuge imbalance / bearing
HighSymptoms: Vibration, loud noise, stop error.
Root cause: Worn bearing or unbalanced rotor.
Reagent / wash flow fault
MediumSymptoms: Clogs, high blank, QC fail.
Root cause: Pump tube wear, air in line.
Optics / lamp degradation
LowSymptoms: Low signal, wavelength drift.
Root cause: Lamp/LED or monochromator aging.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Centrifuge rotor & bearings
Class Major service partRel. cost $$$R&R Difficult
Incubator heater / fan
Class Periodic replacementRel. cost $$R&R Moderate
Sample aspiration probe
Frequent R&R on high-throughput analyzers.
Class Periodic replacementRel. cost $$$R&R Moderate
Peristaltic pump tubing
Consumable, replace proactively.
Class Frequent wear itemRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Centrifuge rotor & bearings | Major service part | $$$ | Difficult |
| Incubator heater / fan | Periodic replacement | $$ | Moderate |
| Sample aspiration probe Frequent R&R on high-throughput analyzers. | Periodic replacement | $$$ | Moderate |
| Peristaltic pump tubing Consumable, replace proactively. | Frequent wear item | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC controls run and reviewed
- ·Calibration verification per assay
- ·Routine cleaning and decontamination
- ·Scheduled reagent-path and pump-tubing maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Sample probe / pipette clog
- Confirm the presentation - typically aspiration error, short sample, carryover - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: clot/crystal obstruction.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the sample aspiration probe per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Reagent / wash flow fault
- Confirm the presentation - typically clogs, high blank, QC fail - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: pump tube wear, air in line.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the peristaltic pump tubing per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Height
- 750 mm
- Throughput
- 100 samples/hr
- Length
- 680 mm
- Weight
- 55 kg
- Sample Volume
- 350 to 500 µL
- Width
- 720 mm
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Central / core laboratory
- Point-of-care testing stations
- Blood bank
- Microbiology lab
Documents & Manuals
No documents available for this device yet.
