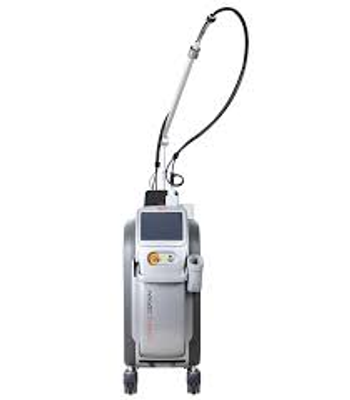

Lutronic DermaV
Lutronic · Model DermaV
The Best Wavelengths: 1064nm in addition to 532nm, which has the ability to treat brown and red simultaneously with better absorption than other “vascular” wavelengths. Optimal Fluence: a high enough fluence to deliver the necessary thermal energy for best possible results, as well as the ability to lower energy to treat small vessels safely. Variable Sequential Pulsing: The first and only 532nm device to offer ICD cooling and flexible, user-specified Variable Sequential Pulsing, replacing ALL pulsed dye and solid-state green lasers. Effective Cooling: DermaV’s effective & adjustable cooling system (pre, delay, and post) protects the skin & optimizes clinical outcomes.
Key tips
- ·Verify true laser output with an external power meter, not the console readout - the display drifts independently of real delivered energy.
- ·Never bypass a door interlock, key switch, or footswitch safety to finish a treatment - laser safety interlocks are not optional.
- ·Most low-output complaints trace to the delivery fiber or handpiece, not the laser source - inspect and swap those first.
- ·Intermittent mid-treatment shutdowns are usually cooling-related - check coolant level and flow before suspecting the diode or lamp.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
No or low laser output
HighSymptoms: Weak or no output at the handpiece, treatment ineffective, power not reaching the set value.
Root cause: Laser module aging, a damaged delivery fibre / handpiece, or a driver / power-supply fault.
Cooling / thermal shutdown
HighSymptoms: Unit shuts down after a period, over-temperature or low-flow alarm.
Root cause: Chiller / TEC fault, low coolant, or blocked airflow.
Contact-cooling (DCD / tip) fault
MediumSymptoms: Skin cooling not delivered, cryogen / contact-cooling alarm.
Root cause: Cryogen supply, valve, or the sapphire contact-cooling tip.
Handpiece / delivery-fibre fault
MediumSymptoms: Burn marks at the tip, high loss, intermittent output.
Root cause: Damaged or contaminated fibre / handpiece.
Footswitch / interlock fault
MediumSymptoms: Laser will not fire, key / interlock / footswitch error.
Root cause: Footswitch, door interlock, or key-switch fault.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Laser module
Class Periodic replacementRel. cost $$$$R&R Expert-level
Delivery fibre / handpiece
Class Frequent wear itemRel. cost $$$R&R Fairly easy
Chiller / TEC components
Class Periodic replacementRel. cost $$$R&R Difficult
Contact-cooling tip / cryogen valve
Class Periodic replacementRel. cost $$R&R Moderate
Footswitch
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Laser module | Periodic replacement | $$$$ | Expert-level |
| Delivery fibre / handpiece | Frequent wear item | $$$ | Fairly easy |
| Chiller / TEC components | Periodic replacement | $$$ | Difficult |
| Contact-cooling tip / cryogen valve | Periodic replacement | $$ | Moderate |
| Footswitch | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Laser output power verification against a calibrated external power meter
- ·Cooling-system check: coolant level, flow rate, and filter / heat-exchanger condition
- ·Delivery-system inspection: handpiece, delivery fiber or articulated arm, and output optics
- ·Interlock, key-switch, emergency-stop, and footswitch function test
- ·Beam-alignment and optical-path check per the service manual
- ·Annual full PM and electrical safety test
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: No or low output
- Measure output at the handpiece with a laser power meter against the setting.
- Fit a known-good handpiece / delivery fibre.
- Confirm the cooling system runs and coolant is at level.
- Check the key, interlock and footswitch.
- Escalate a confirmed laser-module or driver fault to Lutronic; recalibrate power after any module work.
Symptom: Thermal shutdown
- Confirm the cooling fans / pump run and airflow is clear.
- Check the coolant level.
- Let the unit cool and restart.
- Clean the air filters / vents.
- Monitor for recurrence during a treatment.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Operating rooms and surgical procedure suites
- Dermatology and medical-aesthetic clinics
- ENT, gynecology, and specialty procedure rooms
- Outpatient surgical centers
Documents & Manuals
No documents available for this device yet.
Safety & Recalls
Synced live from the FDA openFDA API.
- RECALL
Utilizing higher fluences at 1064nm wavelength with current cryogen parameters may result in a spark/loud noise during treatment, potentially resulting in patient burn.
