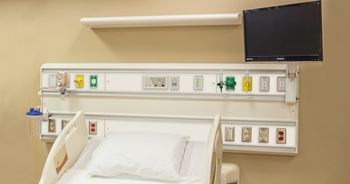

Amico Majestic Series Double Tier Surface Mounted Headwall
Amico · Model Majestic Series Double Tier Surface Mounted Headwall
The Majestic Series Double Tier Surface Mounted Headwall is built for practical use. With multiple horizontal rails, you can easily mount a variety of accessories to suit your needs. This two tier horizontal headwall is also durable and easy to clean.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Medical-gas outlet leak / check-valve wear
HighSymptoms: Hiss at an outlet, low-pressure alarm on bedside equipment.
Root cause: Worn outlet check valve/seal or a loose manifold union behind the panel.
Electrical receptacle failure
HighSymptoms: Dead or intermittent outlet, breaker trips.
Root cause: Loose terminal or worn receptacle.
Horizontal rail loosening (either tier)
MediumSymptoms: Rail-mounted equipment sags or will not lock.
Root cause: Rail fasteners backing out of the wall structure.
Panel / end-cap damage
LowSymptoms: Cracked end cap, lifting laminate, gaps at joints.
Root cause: Impact or fastener failure.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Gas outlet check-valve / seal kit (per gas)
Class Major service partRel. cost $$R&R Moderate
Hospital-grade receptacle
Class Major service partRel. cost $R&R Fairly easy
Rail clamp / fastener kit
Class Major service partRel. cost $R&R Moderate
End cap / laminate panel
Class Major service partRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Gas outlet check-valve / seal kit (per gas) | Major service part | $$ | Moderate |
| Hospital-grade receptacle | Major service part | $ | Fairly easy |
| Rail clamp / fastener kit | Major service part | $ | Moderate |
| End cap / laminate panel | Major service part | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Gas outlet leaking
- Take the gas out of use and access behind the panel.
- Leak-test the outlet and manifold union.
- Fit the correct gas-specific check-valve kit.
- Pressure- and flow-test to spec.
- Confirm gas keying before closing.
Symptom: Outlet dead
- Check the breaker and any GFCI.
- De-energise and re-torque terminations.
- Replace the receptacle if worn.
- Run receptacle tension, polarity, ground tests.
- Electrical-safety-test before service return.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
