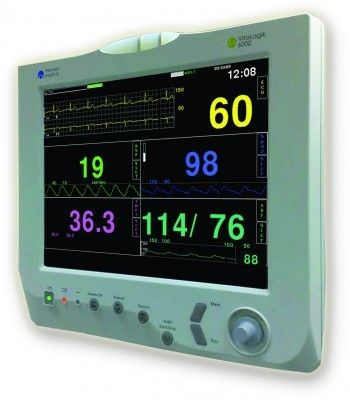

Mennen Medical VitaLogik® 6000
Mennen Medical · Model VitaLogik® 6000
• Parameters: - 3 / 5 / 6 / 12 lead ECG - Respiration - NIBP - SpO2: Masimo or Nellcor technology - Temperature - EtCO2 Microstream - 2 Invasive BP - Cardiac Output / 2 temperatures - Serial RS 232 input - Analog Outputs • Full Disclosure: Retrieval of all ECG leads in full resolution, enabling the viewing of all arrhythmias throughout entire monitoring process. • Event Strips: Up to 75 user-labeled event strips, of all waveforms and alarms at time of the event. • Graphic Trend: Trend panel presentation of graphic trends, including up to eight vital signs with resolution of up to one minute. Long-term view of patient condition changes and their direction. • Numerical Chart: Numerical values of vital signs displayed in up to one minute resolution, including alarms and event marking. User-defined and configured to suit specific patient environment. • Arrhythmia Analysis: Two configuration options: Basic or Extended analysis. Continuous ECG waveform analysis, based on dual lead QRS algorithm, displayed in numerical chart and graphic trend. • ST Watch: Review of ST data as long-term graphic display, representing ST trend changes over time. Trend presentation display of calculated ST parameters. Allows morphology comparisons. • ST All-Lead Analysis: Simultaneous and continuous ST analysis of all ECG leads with ST alarm. • HRV: Calculates indications of heart rate changes within a given time, providing a histogram report, including chart and trends of time domain. HRV statistical parameters of normal QRS complexes. • All-inclusive ECG Lead Display: Simultaneous display of all ECG leads, automatically reverted to main screen following a specified time frame. • Drug Titration and Calculation: Drug concentrate, infusion rate and injection amount calculations performed, according to defined clinical parameters. All medication charts linked to full disclosure, overview and trends.
Key tips
- ·A no-signal/flatline alarm gets checked on the patient first, not the monitor - rule out a real clinical event before troubleshooting.
- ·Recalibrate NIBP against a reference manometer, not just a self-test pass.
- ·Reused patient cables (SpO2, ECG leads) are a common source of intermittent-fault complaints - swap the cable before the module.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
ECG lead-off / artifact
MediumSymptoms: Flat or noisy ECG, frequent lead-off alarms.
Root cause: Worn electrodes, loose leads, or dry gel.
SpO2 probe / sensor failure
MediumSymptoms: No pleth, SpO2 drops to --- or false low.
Root cause: LED/photodiode aging or cable damage.
NIBP measurement error
MediumSymptoms: Cuff fails to inflate, erroneous BP, long cycle.
Root cause: Pump/valve wear or cuff leak.
Internal battery depletion
HighSymptoms: Short backup time, battery alarm on transport.
Root cause: Aged backup battery.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
NIBP cuff & hose
Consumable per patient.
Class Periodic replacementRel. cost $R&R Easy
Rechargeable backup battery
Class Periodic replacementRel. cost $$R&R Fairly easy
Display / touch assembly
Class Periodic replacementRel. cost $$$R&R Difficult
ECG patient cable & lead set
High-turnover; keep inventory.
Class Frequent wear itemRel. cost $$R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| NIBP cuff & hose Consumable per patient. | Periodic replacement | $ | Easy |
| Rechargeable backup battery | Periodic replacement | $$ | Fairly easy |
| Display / touch assembly | Periodic replacement | $$$ | Difficult |
| ECG patient cable & lead set High-turnover; keep inventory. | Frequent wear item | $$ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Routine cable and lead-wire inspection for fraying/wear
- ·Battery conditioning cycle
- ·NIBP calibration check against a reference manometer
- ·ECG / SpO2 accuracy verification against a patient simulator
- ·Annual electrical safety test
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: ECG lead-off / artifact
- Confirm the presentation - typically flat or noisy ECG, frequent lead-off alarms - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: worn electrodes, loose leads, or dry gel.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the eCG patient cable & lead set per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: SpO2 probe / sensor failure
- Confirm the presentation - typically no pleth, SpO2 drops to --- or false low - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: lED/photodiode aging or cable damage.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the spO2 sensor (adult/ped/neo) per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- ICU / CCU
- Emergency Department
- OR / PACU
- General med-surg floors
- Step-down units
- Telemetry units
