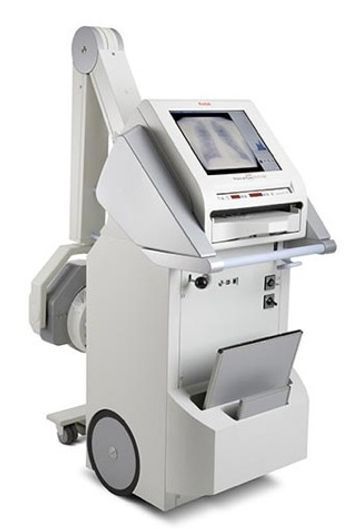

Kodak Point-of-Care CR-ITX 560
Kodak · Model Point-of-Care CR-ITX 560
Mobile X-ray and CR integration...at an affordable price The CR-ITX 560 combines a powerful CR reader and a transportable x-ray unit in a single, self-contained "package." This stand-alone solution is completely mobile, making it ideal for a variety of applications -- bedside exams, emergency rooms, trauma units, intensive care facilities and nursing homes -- where immediate capture and access to patient images at the point of care is a vital part of accurate, time-critical diagnoses. Designed for convenience, the CR-ITX 560 System accelerates clinical workflow and helps improve productivity. All imaging functions can be performed at the point of patient care with this compact, lightweight system that includes a single-plate CR reader, x-ray generator, PC-based workstation with touch-screen monitor, and portable battery source. KODAK Quality Control Software, the engine that "drives" the KODAK Point-of-Care CR-ITX 560 System, is designed to streamline clinical workflow and maximize productivity. With its modular design, the Quality Control Workstation Software eliminates steps in image scanning, processing, and reviewing for enhanced quality assurance. Users can choose resolution scan modes to suit their specific requirements. KODAK Point-of-Care CR-ITX 560 System - the affordable mobile x-ray solution for value-conscious healthcare providers.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
X-ray tube overheating / filament failure
HighSymptoms: Tube won't fire, heat-capacity alarm.
Root cause: Filament wear, cooling failure.
Detector calibration drift
MediumSymptoms: Image noise, artifacts, low SNR.
Root cause: Flat-panel / sensor aging.
Cooling system fault
HighSymptoms: Tube temp alarm, duty-cycle limited.
Root cause: Pump/radiator or coolant loss.
Generator / high-voltage fault
HighSymptoms: Exposure fails, kV/mA out of range error.
Root cause: HV tank or generator board fault.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
High-voltage generator
Class Major service partRel. cost $$$$R&R Expert-level
Workstation RAID / GPU
Class Periodic replacementRel. cost $$$R&R Difficult
X-ray tube insert
Major R&R; track mAs history.
Class Major service partRel. cost $$$$R&R Expert-level
Flat-panel detector
Class Major service partRel. cost $$$$R&R Expert-level
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| High-voltage generator | Major service part | $$$$ | Expert-level |
| Workstation RAID / GPU | Periodic replacement | $$$ | Difficult |
| X-ray tube insert Major R&R; track mAs history. | Major service part | $$$$ | Expert-level |
| Flat-panel detector | Major service part | $$$$ | Expert-level |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: X-ray tube overheating / filament failure
- Confirm the presentation - typically tube won't fire, heat-capacity alarm - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: filament wear, cooling failure.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the x-ray tube insert per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Detector calibration drift
- Confirm the presentation - typically image noise, artifacts, low SNR - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: flat-panel / sensor aging.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the flat-panel detector per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Height
- 63.5 in
- Length
- 48 in
- Weight
- 789 lbs
- CR-System Configuration
- Multi-plate floor unit
- Width
- 26 in
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
