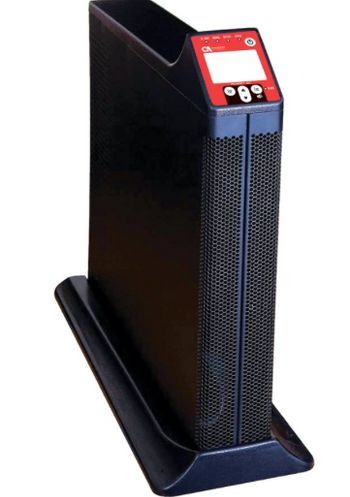

Gamatronic Power+ SA 10kVA
Gamatronic · Model Power+ SA 10kVA
Internal electronic static mechanism for supplying users directly from the electrical grid in the event of a malfunction. This feature enables the UPS to maintain a continuous supply of electricity to users in all scenarios. Battery wiring system does not require an input or output transformer External battery cabinet The unit is controlled using SNMP (optional) or RS232 Dry contacts for operation with PLC 96% electrical efficiency.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
UPS stays in Battery Mode after mains returns
HighSymptoms: AC restored but the UPS keeps running from battery, "AC INPUT FAIL" cleared but no transfer back.
Root cause: External input circuit breaker off, input voltage still out of range, or a rectifier / input-stage fault.
Battery test failed / short backup time
HighSymptoms: "BATTERY LOW" early into an outage, scheduled battery test fails.
Root cause: Aged VRLA battery string, or a test run while the battery was still recharging after an outage; high ambient temperature shortens battery life.
UPS remains in Bypass mode
MediumSymptoms: Main screen shows "Manual Bypass" or the UPS will not leave bypass.
Root cause: Bypass selected manually, an overload, or an inverter fault.
AC OUTPUT FAULT / overload
MediumSymptoms: Alarm LED and audible alarm, output phase voltage out of range.
Root cause: Connected load exceeds the UPS rating, or an inverter fault.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
VRLA battery string (external cabinet)
Life roughly halves for every ~10 C above 20 C.
Class Periodic replacementRel. cost $$$R&R Moderate
Input / bypass circuit breaker
Class Major service partRel. cost $R&R Moderate
Cooling fans
Class Major service partRel. cost $R&R Moderate
Control / display board
Class Major service partRel. cost $$$R&R Difficult
DC bus / filter capacitors
Class Major service partRel. cost $$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| VRLA battery string (external cabinet) Life roughly halves for every ~10 C above 20 C. | Periodic replacement | $$$ | Moderate |
| Input / bypass circuit breaker | Major service part | $ | Moderate |
| Cooling fans | Major service part | $ | Moderate |
| Control / display board | Major service part | $$$ | Difficult |
| DC bus / filter capacitors | Major service part | $$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Error Codes
Extracted directly from this unit's own service manual.
AC LINE FAULTNo input voltage to charger.
BATT. TEST FAILThe last battery test failed.
BATT. TEST.OKThe last battery test was successful (following a failed battery test).
END OF BACKUPBattery has been completely discharged.
INVERTER OFFThe inverter has been turned off.
INVERTER ONThe inverter has been turned on.
LOAD ON BYPASSThe load is bypassing the inverter.
LOAD ON INVERTERThe load has returned to the inverter.
UPS OFFThe UPS was turned off.
UPS ONThe UPS was turned on. 34 Power+ SA User Guide, rel. 3.0 7. BATTERY TESTS 7.1 Automatic battery test The POWER+ SA is programmed to perform a battery test automatically every two weeks. 7.2 Manual battery test To perform a battery test outside of this schedule (a “manual” battery test): 1. From the Main Screen, press the Ent button to display the Main Menu. On the Main Menu select Battery Test and press Ent. The resulting screen tells you the time until the next scheduled automatic battery test. To perform a manual test, press Ent again. The battery test lasts for 60 seconds. The scree
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Electricity returned but UPS stays on battery
- Open the Event Log and read the Active Alarm to identify the condition.
- Check the external circuit breaker for the AC line - it may be off.
- Confirm the input voltage is within range on all phases on the AC Input screen.
- Reset the breaker / restore input and watch for the transfer back to line.
- If input is good but it will not transfer, refer for rectifier-stage service.
Symptom: Battery test failed
- If the test ran shortly after an outage, wait ~2 hours after AC returns and run a manual battery test.
- If it still fails, measure the battery string and individual blocks.
- Check the battery cabinet ambient temperature.
- Replace aged or weak blocks (ideally the whole string).
- Re-run the battery test to clear the alarm.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
