Fujifilm FDR AcSelerate Suite
Fujifilm · Model FDR AcSelerate Suite

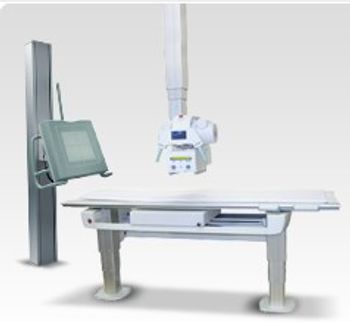

• SpeedLink™ automatically presets preferred, dose-saving techniques: collimation field size and more, to the exam menu selected at the FDX Console • Auto-positioning automatically moves the x-ray tube and corresponding detector to the required position for the exam (tube and detector can also be positioned manually) • Auto-collimation automatically adjusts field size based on Source to Image Distance (SID) and exam type selected at the workstation • Automatic x-ray tube tracking to manual movements of the table and upright detector • Auto-filtering provides three filter thickness options that automatically adjust to the body part designated by the exposure menu selection • 2-second image preview, 4-second cycle times • Lightweight ceiling suspension and tube head system for smooth and easy movement to any position, angle or height • Tilting upright stand (-20 to 90°) with motorized elevation • Large area tabletop and stroke with motorized elevation is easy to position and accommodates up to 550 lbs.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
X-ray tube overheating / filament failure
HighSymptoms: Tube won't fire, heat-capacity alarm.
Root cause: Filament wear, cooling failure.
Detector calibration drift
MediumSymptoms: Image noise, artifacts, low SNR.
Root cause: Flat-panel / sensor aging.
Cooling system fault
HighSymptoms: Tube temp alarm, duty-cycle limited.
Root cause: Pump/radiator or coolant loss.
Generator / high-voltage fault
HighSymptoms: Exposure fails, kV/mA out of range error.
Root cause: HV tank or generator board fault.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
High-voltage generator
Class Major service partRel. cost $$$$R&R Expert-level
Workstation RAID / GPU
Class Periodic replacementRel. cost $$$R&R Difficult
X-ray tube insert
Major R&R; track mAs history.
Class Major service partRel. cost $$$$R&R Expert-level
Flat-panel detector
Class Major service partRel. cost $$$$R&R Expert-level
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| High-voltage generator | Major service part | $$$$ | Expert-level |
| Workstation RAID / GPU | Periodic replacement | $$$ | Difficult |
| X-ray tube insert Major R&R; track mAs history. | Major service part | $$$$ | Expert-level |
| Flat-panel detector | Major service part | $$$$ | Expert-level |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: X-ray tube overheating / filament failure
- Confirm the presentation - typically tube won't fire, heat-capacity alarm - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: filament wear, cooling failure.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the x-ray tube insert per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Detector calibration drift
- Confirm the presentation - typically image noise, artifacts, low SNR - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: flat-panel / sensor aging.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the flat-panel detector per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
