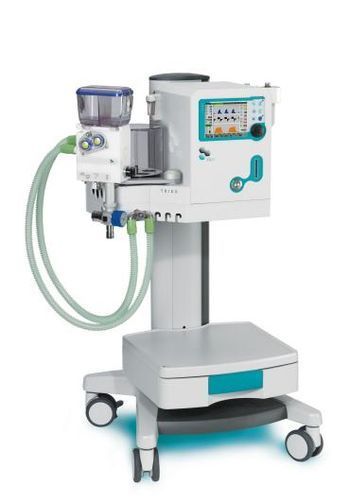

EKU Elektronik · Model TRIGO
Functions: 6,4″ colour touch-screen TFT-LCD with central rotary button – dialogue handling at the screen – self-test and control of the single components in the standby mode – automatic leakage test – electronic control of the adjusted gas dosage – electronic supervision of the pressure gas supply with display and alarm function for lower deviation in pressure – compensation of variations in pressure supply – detection of the system compliance – dynamic compliance compensation – wide adjustment range from 200 ml to 11 litres – precise resolution and display of the scale in 20 ml steps – automatic switchover of the scale at higher flow values – automatic fresh gas dosing for low flow operation – low-pressure-technology from 2 bar pressure – display of the measured values as curves and numeric values – configurable basic adjustments, specific for each ventilation mode – default parameters can be defined – integrated monitor for volume, pressure, O2, anaesthetic agents, N2O, CO2 – electronic PEEP – for neonatal, paediatric and adult application – error state and service information logging – best optic and acoustic visualising of the alarms – single vaporizer holding for different vaporizers (Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane) – compact circle system, CO2-absorber canister is exchangeable during operation without any leakage – RS232 interface for connection to electronic anaesthesia documentation and clinical IT-network Security system: – electronic O2-deficiency detection – electronic N2O-blockage – O2-emergency dosage (min. 4 L/min O2 flow in case of total failure) – emergency dosage for gas supply failure: failure AIR: 100% O2, failure N2O: 100% O2, failure O2: 100% AIR – automatic check for correct covering of the single gas supply channels every time the device is switched on – operation is guaranteed for at least 30 minutes at power supply failure by an internal rechargeable battery Ventilation parameters: – CMV (volume controlled ventilation) – PCV (pressure controlled ventilation) – MAN./SPONT. (manual, spontaneous), spontaneous ventilation with apnea control – SIMV (synchronous intermittend mandatory ventilation) – MMV (mandatory minute ventilation) – ASB (pressure support ventilation)
Key tips
- ·A failed daily leak test takes the machine out of service immediately - there is no acceptable workaround.
- ·Never run an agent-specific vaporizer with the wrong agent, even briefly, during testing.
- ·CO2-absorbent exhaustion mimics several unrelated fault symptoms - rule it out early.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Vaporizer calibration drift
HighSymptoms: Delivered agent concentration off, low/high agent alarm.
Root cause: Worn bellows or O-ring; agent contamination.
O2 failure / pipeline alarm
HighSymptoms: O2 low-pressure alarm, inability to ventilate.
Root cause: Pipeline disconnect or failed O2 flush valve.
Breathing circuit leak
HighSymptoms: Low minute volume, volume loss, leak alarm.
Root cause: Loose connections, torn bellows, cracked hose.
Scavenging system fault
MediumSymptoms: High scavenger pressure, agent smell in OR.
Root cause: Obstructed scavenger line or failed regulator.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Scavenger interface & hose
Class Periodic replacementRel. cost $$R&R Fairly easy
O2 pressure regulator
Class Periodic replacementRel. cost $$$R&R Difficult
Vaporizer (agent-specific)
Requires periodic calibration.
Class Major service partRel. cost $$$$R&R Expert-level
Breathing circuit / bellows
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Scavenger interface & hose | Periodic replacement | $$ | Fairly easy |
| O2 pressure regulator | Periodic replacement | $$$ | Difficult |
| Vaporizer (agent-specific) Requires periodic calibration. | Major service part | $$$$ | Expert-level |
| Breathing circuit / bellows | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily pre-anesthesia machine check: leak test, O2 sensor calibration, per facility protocol
- ·Scheduled vaporizer calibration and agent-specific service
- ·Absorber / CO2 canister replacement
- ·Breathing circuit and hose inspection
- ·Annual full PM and electrical safety test
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Vaporizer calibration drift
- Confirm the presentation - typically delivered agent concentration off, low/high agent alarm - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: worn bellows or O-ring; agent contamination.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the vaporizer (agent-specific) per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Breathing circuit leak
- Confirm the presentation - typically low minute volume, volume loss, leak alarm - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: loose connections, torn bellows, cracked hose.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the breathing circuit / bellows per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Operating rooms
- Procedure / endoscopy suites requiring sedation
- Obstetric delivery rooms
