American Diagnostic Corporation Proscope Dermascope
American Diagnostic Corporation · Model Proscope Dermascope

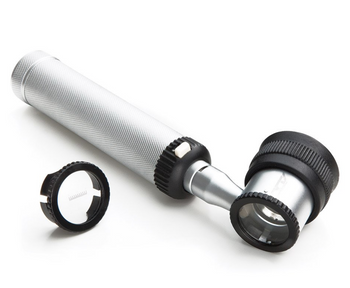

The ADC 2.5v Dermascope features: Bright 2.5v Halogen illumination and 10x optic system ensure true tissue color for accurate identification Removable contact plate is auto-clavable Large knurled focusing ring Comfortable soft synthetic rubber eyepiece Reticle contact plate etched onto the lens in millimeters permits easy measurement of suspicious lesions Instrument head with Bayonet locking mount for secure connection to the battery handle "C" cell powered battery handle with rheostatic on/off switch Knurled handle for a positive grip Complete with nylon zippered pouch that holds the instrument and spare contact plate Inspected and packaged in the U.S.A. from foreign components Batteries NOT included
