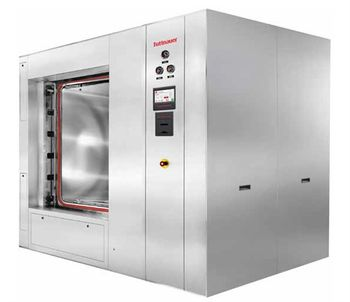

Tuttnauer T-Max Large Capacity Autoclaves
Tuttnauer · Model T-Max Large Capacity Autoclaves
• 9 to 15 StU (Sterilization Units) • Automatic horizontal sliding doors (Single / double) • ASME and PED compliant • 316L stainless steel chamber Door Safety • A safety device prevents the operator from opening the door when chamber is pressurized • Steam will not enter the chamber when the door is open • A cycle cannot start if the door is open or not properly locked • The door cannot unlock until chamber pressure reaches room pressure • Sliding Door Safety - sliding door progress will automatically stop if an obstruction is detected • Double Door Safety – interlocks prevent both doors from being opened simultaneously General Safety • Double Independent Monitoring: The combined electronic and mechanical monitoring ensures that the operator has two independent means to monitor pressure • Safety Valves: If the pressure exceeds the allowed limit the safety valves will discharge • Built-in Steam Generator Safety: A water level monitoring system maintains a constant water level and ensures safe operation of the heaters • Emergency shut-off: Easily accessible emergency switches for immediate cycle shut-off
Key tips
- ·A failed biological indicator means the entire load is not sterile - no exceptions, regardless of how the cycle printout looks.
- ·Door gasket wear is the most common real cause of a failed vacuum/pressure test - check it before deeper diagnostics.
- ·Water quality directly affects steam-cycle validity - don't ignore scale or mineral buildup.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Steam generator / heater fault
HighSymptoms: No steam, low temp, cycle abort.
Root cause: Failed heating element or scale buildup.
Vacuum pump failure
MediumSymptoms: Poor air removal, non-condensable gas fault.
Root cause: Worn vanes/seals.
Chamber temperature sensor drift
MediumSymptoms: Temp out of tolerance, failed Bowie-Dick.
Root cause: Sensor aging.
Water quality / feed fault
LowSymptoms: Scaling, conductivity alarm.
Root cause: RO/DI system failure.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
RO/DI feed cartridge
Consumable.
Class Frequent wear itemRel. cost $R&R Easy
Door gasket / seal
Most-replaced wear item.
Class Periodic replacementRel. cost $$R&R Fairly easy
Steam generator heating element
Class Periodic replacementRel. cost $$$R&R Difficult
Vacuum pump & seals
Class Periodic replacementRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| RO/DI feed cartridge Consumable. | Frequent wear item | $ | Easy |
| Door gasket / seal Most-replaced wear item. | Periodic replacement | $$ | Fairly easy |
| Steam generator heating element | Periodic replacement | $$$ | Difficult |
| Vacuum pump & seals | Periodic replacement | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily biological and chemical indicator test loads
- ·Door gasket / seal inspection
- ·Steam trap and drain strainer cleaning
- ·Annual full PM and pressure-vessel certification
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Door gasket / seal leak
- Confirm the presentation - typically pressure loss, long cycle, steam leak - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: aged rubber gasket.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the door gasket / seal per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Steam generator / heater fault
- Confirm the presentation - typically no steam, low temp, cycle abort - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: failed heating element or scale buildup.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the steam generator heating element per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Central Sterile Supply Department (CSSD)
- OR sterile core
- Satellite reprocessing areas
