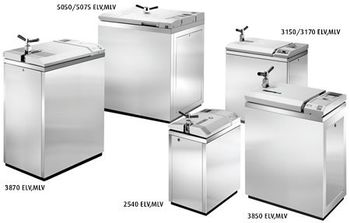

Tuttnauer ELV
Tuttnauer · Model ELV
Control Features. High precision control system for perfect sterilization results. Password protection allows for secure access control. Independent temperature and pressure monitoring. Cycle information recovery in the case of power failure or cycle interruption. Fail Alert – Indicates cycle failure or interruption. Door Alert – Indicates the door is unlocked. RS 232 PC Connection Port for direct software updates and remote maintenance Door Safety. A safety device prevents the operator from opening the door when the chamber is pressurized. Steam is not allowed to enter the chamber when the door is open. A cycle cannot start if the door is open or not properly locked. The door cannot unlock until liquid temperature reaches the predetermined end temp. The door cannot unlock until chamber pressure reaches room pressure. Temperature Activated Door Lock - The door will not open until the temperature is below a specified safe level General Safety Features. Double Independent Monitoring: The combined electronic and mechanical monitoring guarantees accurate results. The operator has two independent means to monitor temperature and pressure. Safety Valves: The chamber is equipped with safety valves – if the pressure exceeds the allowed limit the safety valves will discharge. Built-in Steam Generator Safety: A water level monitoring system maintains a constant water level and ensures safe operation of the heaters Quality Features. The chamber is constructed of long lasting 316Ti grade stainless steel with superior corrosion resistance. The generator is made from stainless steel. The autoclave automatically switches to standby mode if no buttons or switches are operated for four hours. The autoclave is designed for easy servicing allowing maintenance access to all components. Drain Protection: The exhaust drain is mixed with cold tap water that cools the exhaust’s temperature before reaching the drain.
Key tips
- ·A failed biological indicator means the entire load is not sterile - no exceptions, regardless of how the cycle printout looks.
- ·Door gasket wear is the most common real cause of a failed vacuum/pressure test - check it before deeper diagnostics.
- ·Water quality directly affects steam-cycle validity - don't ignore scale or mineral buildup.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Cycle fault / will not reach sterilization parameters
HighSymptoms: Cycle aborts, temperature or pressure not reached / held, failed BI or chemical indicator.
Root cause: Heater / element fault, a door-gasket leak, a steam-generation or water-fill fault, a blocked chamber drain / strainer, or a temperature / pressure-sensor fault.
Door / gasket seal fault
MediumSymptoms: Steam leak at the door, door will not seal, lock or unlock, pressure will not build.
Root cause: Worn door gasket or a door-lock / interlock fault.
Poor drying / wet packs
MediumSymptoms: Instruments / packs come out wet.
Root cause: Drying-phase vacuum / heater fault, an overloaded chamber, or a clogged drain.
Water / reservoir / feedwater fault
MediumSymptoms: Low-water alarm, mineral scale, cloudy chamber, poor steam quality.
Root cause: Empty or scaled reservoir, a fill-valve / pump fault, or use of non-distilled water.
Steam-trap / air-removal / vacuum fault
MediumSymptoms: Failed Bowie-Dick / air-removal test, slow come-up, air pockets.
Root cause: Blocked steam trap, a vacuum-pump / ejector fault, or a check-valve fault.
Printer / recorder fault
LowSymptoms: No or faint cycle printout.
Root cause: Thermal print head or paper.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Door gasket
Class Periodic replacementRel. cost $$R&R Fairly easy
Heating element / steam-generator element
Class Major service partRel. cost $$$R&R Difficult
Chamber / feedwater strainer & fill valve
Class Periodic replacementRel. cost $$R&R Moderate
Temperature / pressure sensor
Class Major service partRel. cost $$R&R Moderate
Steam trap / solenoid & check valves
Class Periodic replacementRel. cost $$R&R Moderate
Thermal print head / paper
Class Periodic replacementRel. cost $R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Door gasket | Periodic replacement | $$ | Fairly easy |
| Heating element / steam-generator element | Major service part | $$$ | Difficult |
| Chamber / feedwater strainer & fill valve | Periodic replacement | $$ | Moderate |
| Temperature / pressure sensor | Major service part | $$ | Moderate |
| Steam trap / solenoid & check valves | Periodic replacement | $$ | Moderate |
| Thermal print head / paper | Periodic replacement | $ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily biological and chemical indicator test loads
- ·Door gasket / seal inspection
- ·Steam trap and drain strainer cleaning
- ·Annual full PM and pressure-vessel certification
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Cycle fault or parameters not reached
- Note the fault code and the phase it aborted in.
- Confirm the reservoir has distilled water and the fill / feedwater path and strainer are clear.
- Inspect the door gasket for a leak and the door lock / interlock.
- Compare the displayed temperature / pressure to independent references.
- Replace the gasket, element or sensor as isolated, then run a BI and a leak / Bowie-Dick test.
Symptom: Wet packs / poor drying
- Reduce the load and re-space so steam and air can move.
- Check the drying-phase vacuum and heater.
- Clean the chamber drain / strainer.
- Confirm packaging is drying-compatible.
- Re-run and inspect for dryness.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Central Sterile Supply Department (CSSD)
- OR sterile core
- Satellite reprocessing areas
