Tuttnauer E and EK Class N

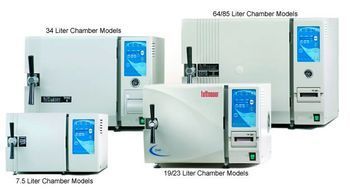

Tuttnauer · Model E and EK Class N
• Enhanced monitoring and documentation • Interdependent temperature and pressure monitoring • User friendly intuitive display • 19 to 85 liter chamber volume • 316L stainless steel chamber and door • 0.2 µm HEPA air filter SAFETY AND CONVENIENCE • Seamlessly integrated into your work environment with compact design and heat insulation • Durable 316L type stainless steel chamber and door with electro-polish finish • Control lock-out switch prevents starting a cycle when door is not properly locked • Door failure protection prevents door from opening at high pressure • Automatic safety shutoff prevents overheating
Key tips
- ·A failed biological indicator means the entire load is not sterile - no exceptions, regardless of how the cycle printout looks.
- ·Door gasket wear is the most common real cause of a failed vacuum/pressure test - check it before deeper diagnostics.
- ·Water quality directly affects steam-cycle validity - don't ignore scale or mineral buildup.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Door gasket / seal leak
HighSymptoms: Pressure loss, long cycle, steam leak.
Root cause: Aged rubber gasket.
Steam generator / heater fault
HighSymptoms: No steam, low temp, cycle abort.
Root cause: Failed heating element or scale buildup.
Chamber temperature sensor drift
MediumSymptoms: Temp out of tolerance, failed Bowie-Dick.
Root cause: Sensor aging.
Water quality / feed fault
LowSymptoms: Scaling, conductivity alarm.
Root cause: RO/DI system failure.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Steam generator heating element
Class Periodic replacementRel. cost $$$R&R Difficult
Vacuum pump & seals
Class Periodic replacementRel. cost $$$R&R Difficult
Chamber temperature sensor
Class Periodic replacementRel. cost $$R&R Moderate
RO/DI feed cartridge
Consumable.
Class Frequent wear itemRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Steam generator heating element | Periodic replacement | $$$ | Difficult |
| Vacuum pump & seals | Periodic replacement | $$$ | Difficult |
| Chamber temperature sensor | Periodic replacement | $$ | Moderate |
| RO/DI feed cartridge Consumable. | Frequent wear item | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily biological and chemical indicator test loads
- ·Door gasket / seal inspection
- ·Steam trap and drain strainer cleaning
- ·Annual full PM and pressure-vessel certification
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Door gasket / seal leak
- Confirm the presentation - typically pressure loss, long cycle, steam leak - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: aged rubber gasket.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the door gasket / seal per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Steam generator / heater fault
- Confirm the presentation - typically no steam, low temp, cycle abort - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: failed heating element or scale buildup.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the steam generator heating element per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
