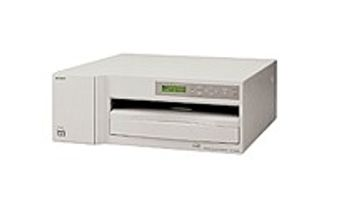

Sony UP-D70XR
Sony · Model UP-D70XR
• High-speed printing • DICOM network-able utilizing the optional UPA-D3 Digital Print Server • Gray balance adjustment • Detachable dust filter • Environmentally friendly • Complies with medical regulations • 6 Media Choices - UPC-8810, UPC-8820, UPC-741, UPT-731BL, UPT-731CL or UPC-8817
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Print head / thermal head wear
HighSymptoms: Streaking, missing lines, or degraded print quality.
Root cause: Thermal head element wear from print-cycle count.
Media jam / feed fault
MediumSymptoms: Paper, film, or media misfeed or jam mid-print.
Root cause: Worn feed rollers or debris in the media path.
Network / driver connectivity fault
MediumSymptoms: Won't receive print jobs from the connected workstation or modality.
Root cause: Network configuration, driver, or interface card fault.
Ribbon / ink / toner depletion
LowSymptoms: Faded, streaked, or blank output.
Root cause: Consumable exhausted or improperly seated.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Media feed roller set
Class Periodic replacementRel. cost $$R&R Fairly easy
Network interface / driver board
Class Major service partRel. cost $$$R&R Moderate
Print head / thermal head assembly
Class Periodic replacementRel. cost $$$R&R Moderate
Ribbon / ink or toner cartridge
Consumable - replace per print-volume schedule.
Class ConsumableRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Media feed roller set | Periodic replacement | $$ | Fairly easy |
| Network interface / driver board | Major service part | $$$ | Moderate |
| Print head / thermal head assembly | Periodic replacement | $$$ | Moderate |
| Ribbon / ink or toner cartridge Consumable - replace per print-volume schedule. | Consumable | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
