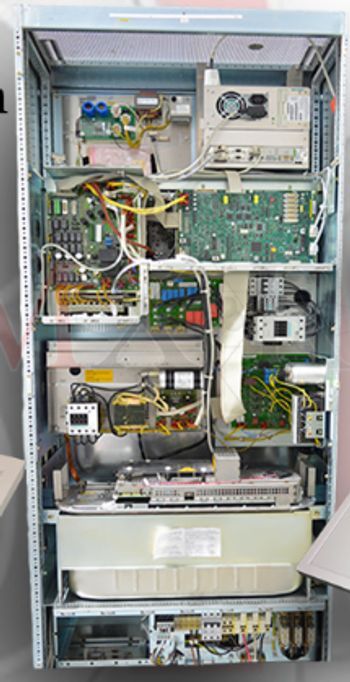

Siemens Polydoros SX 65/80
Siemens Healthineers · Model Polydoros SX 65/80
X-ray Generator.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
No or inconsistent X-ray exposure / generator error
HighSymptoms: Exposure inhibited, generator error / display code, images under- or over-exposed.
Root cause: HV-tank / inverter fault, a tube fault, a filament-supply fault, or an interlock (door, tube-load).
Fluoroscopy dose-rate / image-brightness fault
MediumSymptoms: Fluoro image too dark / bright, dose creep, ABC (automatic brightness control) not tracking.
Root cause: Image-intensifier / detector degradation, or the ABC / dose-control loop.
Tube overload / thermal interlock
MediumSymptoms: Exposures inhibited after a series, tube-heat alarm.
Root cause: Tube-housing heat limit reached, or a cooling / heat-exchanger fault.
Console / room-interface fault
MediumSymptoms: Console unresponsive, will not communicate with the stand / table / spot-film device.
Root cause: Console board or interconnect cabling.
Collimator / beam-limiting fault
LowSymptoms: Field mis-collimated, collimator light out, filter not inserting.
Root cause: Collimator drive / lamp or filter mechanism.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
HV tank / inverter components
Class Major service partRel. cost $$$$R&R Expert-level
X-ray tube assembly
Class Major service partRel. cost $$$$R&R Expert-level
Image intensifier / detector
Class Major service partRel. cost $$$$R&R Expert-level
Cooling / heat-exchanger components
Class Major service partRel. cost $$$R&R Difficult
Collimator lamp / drive assembly
Class Periodic replacementRel. cost $$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| HV tank / inverter components | Major service part | $$$$ | Expert-level |
| X-ray tube assembly | Major service part | $$$$ | Expert-level |
| Image intensifier / detector | Major service part | $$$$ | Expert-level |
| Cooling / heat-exchanger components | Major service part | $$$ | Difficult |
| Collimator lamp / drive assembly | Periodic replacement | $$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: No exposure / generator error
- Note the exact generator error / display code.
- Check the mains supply is within spec and the room interlocks are satisfied.
- Confirm the tube is not in a thermal lockout.
- Check the HT connections and the exposure contactor.
- Escalate a confirmed HV-tank / inverter / tube fault to Siemens; verify output with an X-ray analyser after repair.
Symptom: Fluoro dose-rate / brightness fault
- Assess the image with a phantom at a fixed field / distance.
- Check the image-intensifier / detector performance via diagnostics.
- Review the dose / ABC trend.
- Escalate an intensifier / detector degradation or an ABC-loop fault to Siemens.
- Re-verify dose-rate against the room's baseline after correction.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
