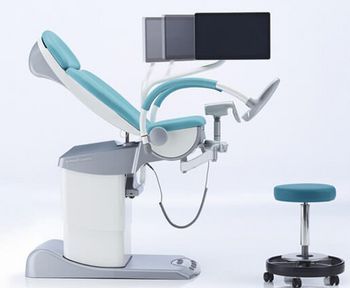

Schmitz Vidan2
Schmitz · Model Vidan2
Ergonomic sitting position Diagnostic accuracy Space and time saving Completely autonomous - no additional computer needed.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Illumination fault
MediumSymptoms: Light out, dim, flickering, uneven field, colour shift.
Root cause: Halogen bulb or LED module / driver at end of life, or a light-guide / power fault.
Focus / magnification-changer fault
MediumSymptoms: Fine focus slips or binds, magnification changer sticks, image not sharp.
Root cause: Worn focus drive or a magnification-changer detent fault.
Stand / arm / brake drift
MediumSymptoms: Head drifts down, will not hold position, arm joints loose.
Root cause: Spring-arm counterbalance or friction brakes out of adjustment.
Green (red-free) filter / filter-wheel fault
LowSymptoms: Filter will not engage or is stuck in place.
Root cause: Worn filter mechanism.
Camera / video / capture fault (video colposcopes)
LowSymptoms: No or poor image, capture software will not connect.
Root cause: Camera, its cable, or the imaging PC.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Illumination bulb / LED module & driver
Class Frequent wear itemRel. cost $$R&R Fairly easy
Focus-drive / magnification-changer kit
Class Major service partRel. cost $$R&R Difficult
Spring-arm counterbalance / friction-brake kit
Class Major service partRel. cost $$R&R Moderate
Filter wheel / mechanism
Class Major service partRel. cost $R&R Moderate
Camera / video module (video colposcopes)
Class Major service partRel. cost $$$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Illumination bulb / LED module & driver | Frequent wear item | $$ | Fairly easy |
| Focus-drive / magnification-changer kit | Major service part | $$ | Difficult |
| Spring-arm counterbalance / friction-brake kit | Major service part | $$ | Moderate |
| Filter wheel / mechanism | Major service part | $ | Moderate |
| Camera / video module (video colposcopes) | Major service part | $$$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Dim or no illumination
- Replace the bulb / LED module with the correct type.
- Check the driver / power supply and connections.
- Inspect the light guide (if fibre) for dark fibres.
- Confirm even, full-brightness output.
- Replace the driver / power supply if output stays low.
Symptom: Head will not hold position
- Adjust the spring-arm counterbalance for the head weight.
- Check the friction brakes at each joint.
- Replace the counterbalance / brake kit if adjustment does not hold.
- Cycle the arm through its range.
- Confirm the head stays put at working positions.
