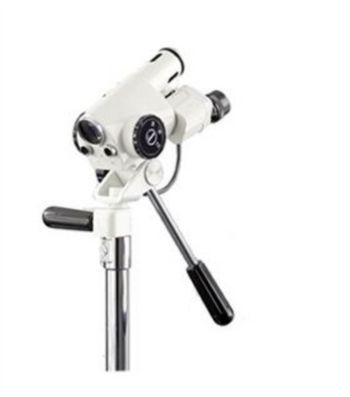

Leisegang OptiK Model 1
Leisegang · Model OptiK Model 1
3-step magnification drum changer (3.75x/7.5x/15x) Inbuilt LED lamp Individually adjusting oculars with measuring reticles Measuring reticules in the optical pathway for lesion assessment Gross and fine focusing and height adjustments Green filter.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
LED illumination failure or uneven field
MediumSymptoms: No light, dim or uneven illumination, colour shift.
Root cause: Built-in LED module or its driver.
Magnification drum will not click / image shifts
MediumSymptoms: 3-step drum (3.75x/7.5x/15x) does not seat, image jumps or blurs at a step.
Root cause: Worn drum detent or a decentred lens.
Focus / height adjustment drift or bind
HighSymptoms: Gross/fine focus creeps, height column stiff or drops.
Root cause: Worn focus rack or height-column clamp.
Ocular reticle / diopter fault
LowSymptoms: Measuring reticle out of alignment, diopter setting will not hold.
Root cause: Loose eyepiece or worn diopter thread.
Green filter mechanism stuck
LowSymptoms: Green (red-free) filter will not swing in or out.
Root cause: Worn or fouled filter slide.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
LED lamp module
Class Major service partRel. cost $$R&R Moderate
LED driver / power supply
Class Major service partRel. cost $R&R Moderate
Magnification drum assembly
Class Major service partRel. cost $$$R&R Difficult
Focus / height mechanism kit
Class Major service partRel. cost $$R&R Difficult
Reticle eyepiece
Class Major service partRel. cost $$R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| LED lamp module | Major service part | $$ | Moderate |
| LED driver / power supply | Major service part | $ | Moderate |
| Magnification drum assembly | Major service part | $$$ | Difficult |
| Focus / height mechanism kit | Major service part | $$ | Difficult |
| Reticle eyepiece | Major service part | $$ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: No or uneven light
- Confirm mains power and the illuminator switch.
- Check the LED driver output.
- Replace the driver if the LED is unpowered.
- Replace the LED module for a failed emitter.
- Verify an even, full-brightness field.
Symptom: Focus or height will not hold
- Identify which adjustment drifts.
- Adjust the focus-clutch tension or the height-column clamp.
- Replace the mechanism kit if adjustment does not hold.
- Cycle the full range and confirm it stays put.
- Re-check the reticle alignment after any optics work.
