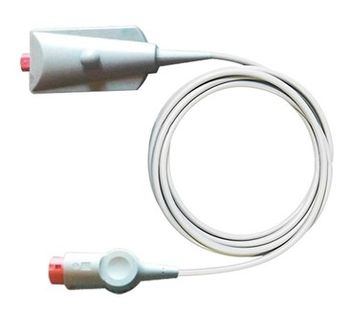

Philips M1364A Fetal/Maternal
Philips Healthcare · Model M1364A Fetal/Maternal
Philips M1364A Fetal/Maternal ECG Module Use With Philips Medical Fetal Monitors M1350A, M1350B, M1350C, M1353A, M1310A.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
A parameter drops out or reads wrong
HighSymptoms: ECG, IBP, NIBP, temperature or CO intermittently drops or is implausible.
Root cause: Worn patient cable / sensor, or a module input-board fault.
Module not recognised by the host
MediumSymptoms: Host monitor (IntelliVue / MP series) does not display the module or MMS.
Root cause: Docking / rack connector or cable fault.
NIBP will not measure or is inaccurate
MediumSymptoms: NIBP times out, cuff will not inflate / hold, readings implausible.
Root cause: Internal NIBP pump or valve, a cuff / hose leak, or a pressure-transducer fault.
Cable / connector wear
LowSymptoms: Intermittent signal with cable movement.
Root cause: Worn patient cable.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Patient cable set
Class Frequent wear itemRel. cost $$R&R Easy
NIBP cuff and hose
Class Frequent wear itemRel. cost $R&R Easy
Module input board
Class Major service partRel. cost $$$R&R Difficult
Module / MMS docking connector
Class Major service partRel. cost $$R&R Moderate
Internal NIBP pump / valve
Class Major service partRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Patient cable set | Frequent wear item | $$ | Easy |
| NIBP cuff and hose | Frequent wear item | $ | Easy |
| Module input board | Major service part | $$$ | Difficult |
| Module / MMS docking connector | Major service part | $$ | Moderate |
| Internal NIBP pump / valve | Major service part | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: A parameter drops out
- Reseat the patient cable at the module.
- Swap in a known-good cable for that parameter.
- Dock the module on a different host / slot to isolate module vs host.
- Inspect the docking connector for bent pins.
- Replace the cable or refer the module if the fault stays with it.
Symptom: Module not recognised
- Reseat the module / MMS at the host or rack.
- Inspect the docking connector for bent pins.
- Try it in another host or slot.
- Try a known-good module in this slot.
- Refer the module or host slot as isolated.
