PHCBi GP-US932A

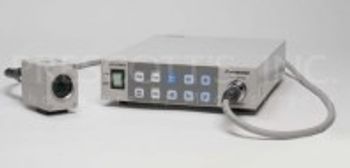

PHCBi · Model GP-US932A
The unit is 1080p, 1080i or 720P selectable and uses three 1/3" type 16x9 Progressive HD sensors running at full 60 frames per second. Offering sharp, flicker-free images with better vertical resolution. Each pixel has a large light-receiving area, giving this newly developed 1/3" type progressive CCD exceptional high sensitivity. This advanced CCD and a newly developed digital signal processor(DSP),in combination with a very sophisticated offset spatial technology, achieves a balance of high resolution and high S/N ratio required for critical HD applications. Starting from progressive capture, the GP-US932A's newly developed DSP uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy and results in true 1920x1080i, 1920x1080p or 1280x720p HD outputs.
Key tips
- ·A failed leak test means the scope does not get reprocessed or used - send it for repair, full stop.
- ·A shortened reprocessing cycle is a real infection-control failure, not a minor deviation - follow AAMI ST91 exactly.
- ·Track light-source lamp-hours against the manufacturer's limit rather than running to failure.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Image sensor / CCD fault
HighSymptoms: No image, color shift, or visible artifacts.
Root cause: Image sensor or its driver board aging.
Camera cable / connector wear
MediumSymptoms: Intermittent signal or no image at the tower.
Root cause: Cable flex fatigue or connector pin wear.
Coupler / lens fault
MediumSymptoms: Blurry, dark, or off-center image.
Root cause: Coupler or lens element misalignment/damage.
White balance / calibration fault
LowSymptoms: Color inaccuracy that won't correct on white-balance.
Root cause: Calibration drift or button/sensor fault.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Camera control unit (CCU)
Class Major service partRel. cost $$$$R&R Difficult
Camera head / sensor assembly
Class Periodic replacementRel. cost $$$$R&R Difficult
Camera cable
High-turnover; keep spares.
Class Periodic replacementRel. cost $$R&R Easy
Coupler / lens assembly
Class Major service partRel. cost $$$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Camera control unit (CCU) | Major service part | $$$$ | Difficult |
| Camera head / sensor assembly | Periodic replacement | $$$$ | Difficult |
| Camera cable High-turnover; keep spares. | Periodic replacement | $$ | Easy |
| Coupler / lens assembly | Major service part | $$$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Leak testing before each reprocessing cycle
- ·Scope reprocessing per AAMI ST91
- ·Light source lamp-hour tracking
- ·Annual full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Image sensor / CCD fault
- Confirm the presentation - typically no image, color shift, or visible artifacts.
- Check the most likely cause first: image sensor or its driver board aging.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the camera head / sensor assembly per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Camera cable / connector wear
- Confirm the presentation - typically intermittent signal or no image at the tower.
- Check the most likely cause first: cable flex fatigue or connector pin wear.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the camera cable per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Endoscopy suite / GI lab
- Operating Room
- Bronchoscopy suite
