Pentax VSB-3430
Pentax · Model VSB-3430

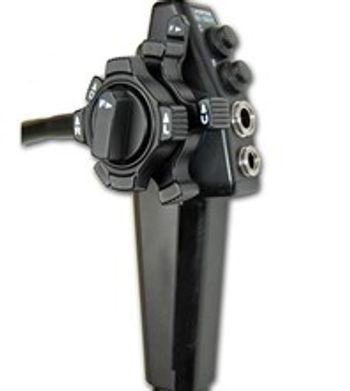

The VSB-3430K is commonly used for examination of the small bowel through push enteroscopy. The VSB-3430K features a 2200 mm insertion tube length and a large 3.8 mm channel for passing instruments, if necessary.
Key tips
- ·A failed leak test means the scope does not get reprocessed or used - send it for repair, full stop.
- ·A shortened reprocessing cycle is a real infection-control failure, not a minor deviation - follow AAMI ST91 exactly.
- ·Track light-source lamp-hours against the manufacturer's limit rather than running to failure.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Bulb / lamp failure
HighSymptoms: No light output, or dim/flickering output.
Root cause: Xenon or LED lamp module end-of-life.
Fan / cooling fault
MediumSymptoms: Overheat shutdown or thermal alarm.
Root cause: Cooling fan or vent obstruction.
Fiber optic cable wear
MediumSymptoms: Reduced light transmission, dim image at the scope.
Root cause: Fiber bundle damage from flex or connector wear.
Intensity control fault
LowSymptoms: Won't adjust brightness, stuck at one level.
Root cause: Control board or potentiometer fault.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Xenon / LED lamp module
Consumable - replace per lamp-hour schedule.
Class Frequent wear itemRel. cost $$$R&R Fairly easy
Cooling fan
Class Periodic replacementRel. cost $R&R Fairly easy
Fiber optic light cable
High-turnover; keep spares.
Class Periodic replacementRel. cost $$R&R Easy
Intensity control board
Class Major service partRel. cost $$$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Xenon / LED lamp module Consumable - replace per lamp-hour schedule. | Frequent wear item | $$$ | Fairly easy |
| Cooling fan | Periodic replacement | $ | Fairly easy |
| Fiber optic light cable High-turnover; keep spares. | Periodic replacement | $$ | Easy |
| Intensity control board | Major service part | $$$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Leak testing before each reprocessing cycle
- ·Scope reprocessing per AAMI ST91
- ·Light source lamp-hour tracking
- ·Annual full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Bulb / lamp failure
- Confirm the presentation - typically no light output, or dim/flickering output.
- Check the most likely cause first: xenon or LED lamp module end-of-life.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the xenon / LED lamp module per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Fan / cooling fault
- Confirm the presentation - typically overheat shutdown or thermal alarm.
- Check the most likely cause first: cooling fan or vent obstruction.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the cooling fan per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Length
- 220 cm
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Endoscopy suite / GI lab
- Operating Room
- Bronchoscopy suite
Documents & Manuals
