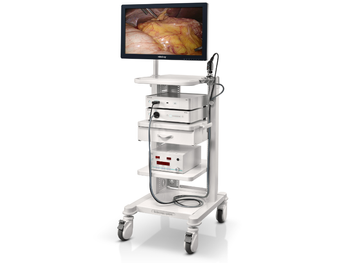

Mindray HD3
Mindray · Model HD3
HD3 Camera System 3-chip CMOS sensor FHD picture taking and video recording with USB port Advanced parfocal technology 2X optical zoom Focal length: 14mm-30mm Laparoscopes High-resolution images and outstanding color rendition Scratch-resistant sapphire lens Fog reduction function Autoclavable lens Compatible with third-party optical fiber cables HS50 Insufflator Maximum flow rate: 50L/min Large 7-inch touchscreen Gas heating function Smoke evacuation Automatic flow compensation Auto-switchover between veress needle mode and trocar mode Up to 5 insufflation modes, satisfy all insufflation needs
Key tips
- ·A failed leak test means the scope does not get reprocessed or used - send it for repair, full stop.
- ·A shortened reprocessing cycle is a real infection-control failure, not a minor deviation - follow AAMI ST91 exactly.
- ·Track light-source lamp-hours against the manufacturer's limit rather than running to failure.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Image sensor / CCD fault
HighSymptoms: No image, color shift, or visible artifacts.
Root cause: Image sensor or its driver board aging.
Camera cable / connector wear
MediumSymptoms: Intermittent signal or no image at the tower.
Root cause: Cable flex fatigue or connector pin wear.
Coupler / lens fault
MediumSymptoms: Blurry, dark, or off-center image.
Root cause: Coupler or lens element misalignment/damage.
White balance / calibration fault
LowSymptoms: Color inaccuracy that won't correct on white-balance.
Root cause: Calibration drift or button/sensor fault.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Camera control unit (CCU)
Class Major service partRel. cost $$$$R&R Difficult
Camera head / sensor assembly
Class Periodic replacementRel. cost $$$$R&R Difficult
Camera cable
High-turnover; keep spares.
Class Periodic replacementRel. cost $$R&R Easy
Coupler / lens assembly
Class Major service partRel. cost $$$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Camera control unit (CCU) | Major service part | $$$$ | Difficult |
| Camera head / sensor assembly | Periodic replacement | $$$$ | Difficult |
| Camera cable High-turnover; keep spares. | Periodic replacement | $$ | Easy |
| Coupler / lens assembly | Major service part | $$$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Leak testing before each reprocessing cycle
- ·Scope reprocessing per AAMI ST91
- ·Light source lamp-hour tracking
- ·Annual full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Image sensor / CCD fault
- Confirm the presentation - typically no image, color shift, or visible artifacts.
- Check the most likely cause first: image sensor or its driver board aging.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the camera head / sensor assembly per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Camera cable / connector wear
- Confirm the presentation - typically intermittent signal or no image at the tower.
- Check the most likely cause first: cable flex fatigue or connector pin wear.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the camera cable per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Endoscopy suite / GI lab
- Operating Room
- Bronchoscopy suite
Documents & Manuals
No documents available for this device yet.
