Leica Microsystems RUV800
Leica Microsystems · Model RUV800

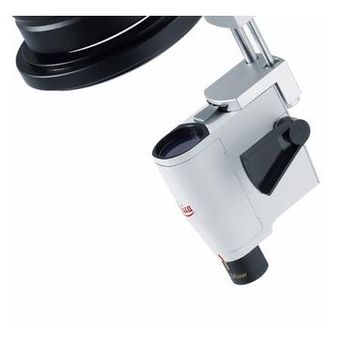

Conventional systems require stacked inverters to view an upright image of the retina. With the Leica solution, the inverter is integrated into the body of the Leica RUV800 thus requiring no extra inverter. This system is simple by design, with no disposables, no electronics, and less potential downtime. The Leica RUV800 sits beneath the microscope’s optics and gives the surgeon, assistant, and the video monitor the same upright view all over the surgical field. This makes it easier and safer to position and insert retinal instruments. Simply swing the Leica RUV800 into the optical path and adjust the focus lever(s) for sharp, high quality, wide angle views of the retina. Use either the wide angle 132 diopter XLView loupe or for higher magnification the 90 diopter loupe The OR staff saves time preparing for surgery, as the main part of the Leica RUV800 remains mounted to the microscope. Only the loupe, focus lever, and silicone sleeve require sterilization. In addition, the AgProtect nano silver coating gives the Leica RUV800 antibacterial qualities. The integrated inverter of the Leica RUV800 means no additional height is added to the microscope stack, which improves ergonomics and surgeon's comfort. Other retinal viewing systems have a separate inverter below the binocular tube, which is a potential obstacle during anterior segment surgery. Unlike these systems, the Leica RUV800 is easily removed after retinal surgery leaving the microscope ready for cataract surgery.
