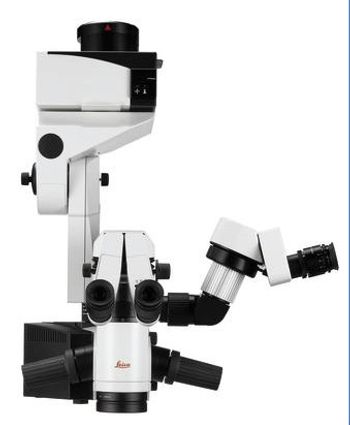

Leica Microsystems Rotatable Beam Splitter
Leica Microsystems · Model Rotatable Beam Splitter
The rotation from side to side provides the ultimate versatility in the operating room, with no parts to remove, drop, and possibly damage. The dedicated video port at the back of the beamsplitter keeps the camera in position all the time and eliminates the need to reposition it from case to case. The 50/50 beamsplitter provides bright illumination for high definition video and retinal procedures when a superior degree of light is required.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Image split uneven or dim on one port
MediumSymptoms: Co-observer or camera port noticeably darker, or vignetted.
Root cause: Beam-splitter prism contamination or a mis-set split ratio.
Rotation mechanism stiff or will not lock
MediumSymptoms: The rotatable body binds or drifts from the set angle.
Root cause: Worn rotation detent / friction ring.
Optics contamination
LowSymptoms: Spots or haze through the affected port.
Root cause: Dust or fingerprints on the splitter glass.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Beam-splitter prism / glass
Class Major service partRel. cost $$$R&R Difficult
Rotation detent / friction ring
Class Major service partRel. cost $$R&R Moderate
Dust caps / port covers
Class Periodic replacementRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Beam-splitter prism / glass | Major service part | $$$ | Difficult |
| Rotation detent / friction ring | Major service part | $$ | Moderate |
| Dust caps / port covers | Periodic replacement | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: One port dark or vignetted
- Clean the splitter glass and the port optics.
- Confirm the correct split-ratio module is fitted.
- Check the port is fully seated on the microscope.
- Compare both eyepiece paths.
- Replace the prism if a port stays dim after cleaning.
Symptom: Rotation binds
- Clean the rotation interface.
- Adjust the friction ring.
- Replace the detent / friction ring if it will not hold an angle.
- Confirm smooth rotation and a firm lock.
- Re-check image quality through the range.
