Leica Microsystems M820
Leica Microsystems · Model M820

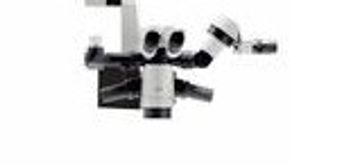

The double beam stereo illumination and Leica's large OttoFlex II illumination diameter enable true three-dimensional vision, and better Red Reflex stability and brightness. The result: increased depth of field, less XY-centering and refocusing required, brightness adjustable where it is needed most. The Leica M820 F20 offers an excellent mixture of features to support the surgical workflow while also enhancing the comfort of surgeon and staff. For example: UltraLow II binocular tubes, Rotatable Beamsplitter, Wireless Footswitch, Two-in-One display, StepCycle, and Auto Reset function. Leica's Rotatable Beamsplitter is the world's first two-beampath solution for temporal approach cataract surgery. The easy, side-to-side quick change of the assistant observer optics saves time between cases and increases efficiency in the operating room. Leica's Wireless Footswitch offers maximum mobility for a fast and easy switch between left and right eye procedures. It uses ISM bandwidth technology and the battery has a life expectancy of about one year. The result: cordless convenience.
Key tips
- ·Never defeat or bypass a return-electrode monitoring (REM) alarm to finish a case - it's a direct burn risk.
- ·Verify OR table battery backup - a table that loses power mid-procedure is a real, documented incident type.
- ·Track surgical light lamp-hours rather than waiting for failure - a sudden failure mid-case is avoidable.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Instrument / implant breakage
HighSymptoms: Fractured tip, loose component, debris.
Root cause: Metal fatigue, improper reprocessing, or misuse.
Reprocessing / sterilization failure
MediumSymptoms: Residue, bioburden, discoloration.
Root cause: Inadequate cleaning cycle or damaged tray.
Table hydraulic / actuator fault
MediumSymptoms: Slow or drifting positioning.
Root cause: Cylinder seal or actuator wear.
OR light LED failure
LowSymptoms: Dim or dead panel, color shift.
Root cause: LED module aging.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Table hydraulic actuator
Class Periodic replacementRel. cost $$$R&R Difficult
Instrument repair / replacement set
High-turnover consumable instruments.
Class Periodic replacementRel. cost $$R&R Fairly easy
Electrosurgical pencil & electrode
Consumable per procedure.
Class ConsumableRel. cost $R&R Easy
Return electrode (patient plate)
Single-use; expiry critical.
Class ConsumableRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Table hydraulic actuator | Periodic replacement | $$$ | Difficult |
| Instrument repair / replacement set High-turnover consumable instruments. | Periodic replacement | $$ | Fairly easy |
| Electrosurgical pencil & electrode Consumable per procedure. | Consumable | $ | Easy |
| Return electrode (patient plate) Single-use; expiry critical. | Consumable | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Pre-case functional check
- ·Electrosurgical return-electrode cable inspection
- ·Table hydraulic / mechanical inspection
- ·Annual electrical safety test and full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Electrosurgical electrode wear
- Confirm the presentation - typically poor cut/coag, sparking, low power - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: burned/eroded blade or pencil.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the electrosurgical pencil & electrode per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Return electrode / pad fault
- Confirm the presentation - typically pad alarm, no activation - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: poor contact or expired pad.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the return electrode (patient plate) per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Weight
- 270 kg as a fully configured system
- Field of view
- 7 to 80 mm
- Focus range
- 54mm
- Focusing
- Motorized
- Magnification
- 6:1
- Magnification Range
- 3.5× – 21× WD 175mm, 10× eyepieces
