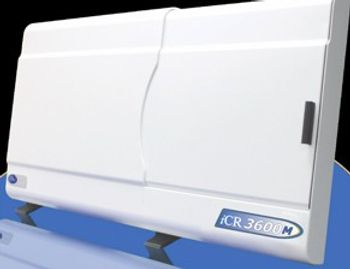

iCRco iCR3600M
iCRco · Model iCR3600M
True Flat Scan Path The iCR3600M is a Mammography capable large format Computed Radiography Machine that can be used in all areas of General Radiology and Diagnostic Imaging. The iCR36ooM provides higher DGE and higher resolution images with less noise. This CR can accommodate all size cassettes including mammography.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
X-ray tube overheating / filament failure
HighSymptoms: Tube won't fire, heat-capacity alarm.
Root cause: Filament wear, cooling failure.
Detector calibration drift
MediumSymptoms: Image noise, artifacts, low SNR.
Root cause: Flat-panel / sensor aging.
Generator / high-voltage fault
HighSymptoms: Exposure fails, kV/mA out of range error.
Root cause: HV tank or generator board fault.
Recon / system software hang
LowSymptoms: Frozen console, acquisition timeout.
Root cause: Workstation or RAID degradation.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Flat-panel detector
Class Major service partRel. cost $$$$R&R Expert-level
Cooling pump & radiator
Class Periodic replacementRel. cost $$$R&R Difficult
High-voltage generator
Class Major service partRel. cost $$$$R&R Expert-level
Workstation RAID / GPU
Class Periodic replacementRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Flat-panel detector | Major service part | $$$$ | Expert-level |
| Cooling pump & radiator | Periodic replacement | $$$ | Difficult |
| High-voltage generator | Major service part | $$$$ | Expert-level |
| Workstation RAID / GPU | Periodic replacement | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: X-ray tube overheating / filament failure
- Confirm the presentation - typically tube won't fire, heat-capacity alarm - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: filament wear, cooling failure.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the x-ray tube insert per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Detector calibration drift
- Confirm the presentation - typically image noise, artifacts, low SNR - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: flat-panel / sensor aging.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the flat-panel detector per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Weight
- 38 lbs
- CR-System Configuration
- Single-plate table unit
- Mammography Support
- 1
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
