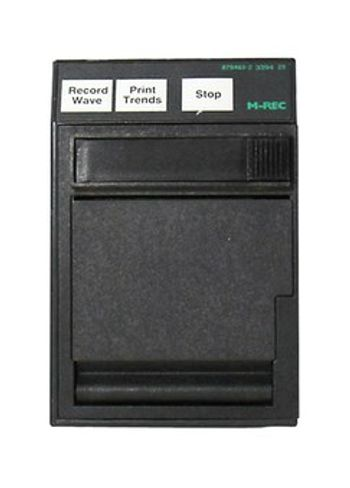

GE HealthCare Datex-Ohmeda M-REC Module
GE HealthCare · Model Datex-Ohmeda M-REC Module
Direct keys for the most common functions. Prints up to 3 user-selectable waveforms. Selectable paper speed. Grid for accurate waveform analysis. Prints numerical and graphic trends. Full numerical printout annotation when one or 2 waveforms are printed.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
A parameter drops out or reads wrong
HighSymptoms: ECG, IBP, temperature, NIBP or CO intermittently drops or is implausible.
Root cause: Worn patient cable / connector, or a module input-board fault.
Module / pod not recognised by the host
MediumSymptoms: Host monitor does not display the module or Tram / pod.
Root cause: Docking / rack connector or cable fault.
NIBP will not measure or is inaccurate
MediumSymptoms: NIBP times out, cuff will not inflate / hold, readings implausible.
Root cause: Internal NIBP pump or valve, a cuff / hose leak, or a pressure-transducer fault.
Cable / connector wear
LowSymptoms: Intermittent signal with cable movement.
Root cause: Worn patient cable.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Patient cable set
Class Frequent wear itemRel. cost $$R&R Easy
NIBP cuff and hose
Class Frequent wear itemRel. cost $R&R Easy
Module input board
Class Major service partRel. cost $$$R&R Difficult
Module / Tram / pod docking connector
Class Major service partRel. cost $$R&R Moderate
Internal NIBP pump / valve
Class Major service partRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Patient cable set | Frequent wear item | $$ | Easy |
| NIBP cuff and hose | Frequent wear item | $ | Easy |
| Module input board | Major service part | $$$ | Difficult |
| Module / Tram / pod docking connector | Major service part | $$ | Moderate |
| Internal NIBP pump / valve | Major service part | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: A parameter drops out
- Reseat the patient cable at the module.
- Swap in a known-good cable for that parameter.
- Dock the module on a different host / slot to isolate module vs host.
- Inspect the docking connector for bent pins.
- Replace the cable or refer the module if the fault stays with it.
Symptom: Module / pod not recognised
- Reseat the module / Tram / pod at the host or rack.
- Inspect the docking connector for bent pins.
- Try it in another host or slot.
- Try a known-good module in this slot.
- Refer the module or host slot as isolated.
Technical Specs
- Height
- 10 in
- Length
- 10 in
- Weight
- 2 lbs
- Width
- 3 in
Documents & Manuals
No documents available for this device yet.
Safety & Recalls
Synced live from the FDA openFDA API.
- RECALL
A potential safety issue due to loss of gas monitoring associated with occlusion of specific D-Fend / D-Fend+ water traps used with Compact Airway Modules E/M-C(Ai)O(V)(X) and Cardiocap/5 monitors. This water trap occlusion could cause a loss of respiratory airway gas monitoring.
- RECALL
There is a correction associated with Engstrom Carestation with an integrated Aerogen Professional Nebulizer System. There is an issue relating to the removal of the nebulizer cable from nebulizer connection port, which, when done while the nebulizer is active, may result in the discontinuance of mechanical ventilation. This issue affects all of the Engstrm Carestations shipped between 12/4/2006
