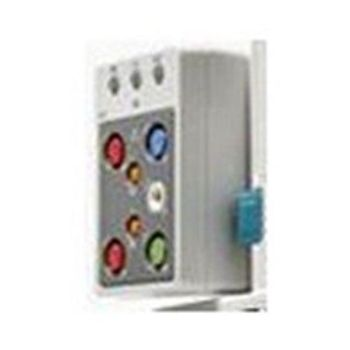

For Elite V8 Modular Patient Monitor Edan V-IBP Module is intended for the use with Edan Elite V8 Modular Patient Monitor. It facilitates invasive blood pressure measurement function and features a great plug-and-play design that provide simplicity of assembly and usage.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Pressure / haemodynamic channel will not zero or reads wrong
HighSymptoms: IBP / PiCCO / CNAP trace offset, "zero required" persists, values implausible.
Root cause: Transducer not open to atmosphere during zero, a damaged cable, or a module input fault.
Module / pod not recognised by the host
MediumSymptoms: Host monitor does not display the module or pod.
Root cause: Docking / pod connector or cable fault.
Noisy or absent waveform
MediumSymptoms: Damped, noisy or flat trace.
Root cause: Air / clot in the line, a loose connection, or a cable fault.
Cable / connector wear
LowSymptoms: Intermittent signal with cable movement.
Root cause: Worn patient cable.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Patient cable set
Class Frequent wear itemRel. cost $$R&R Easy
Pressure transducer set
Class ConsumableRel. cost $R&R Easy
Module input board
Class Major service partRel. cost $$$R&R Difficult
Module / pod docking connector
Class Major service partRel. cost $$R&R Moderate
Reusable IBP cable
Class Periodic replacementRel. cost $$R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Patient cable set | Frequent wear item | $$ | Easy |
| Pressure transducer set | Consumable | $ | Easy |
| Module input board | Major service part | $$$ | Difficult |
| Module / pod docking connector | Major service part | $$ | Moderate |
| Reusable IBP cable | Periodic replacement | $$ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Will not zero / noisy waveform
- Open the transducer to atmosphere and re-zero.
- Flush the line and clear any air or clot.
- Swap in a known-good cable.
- Dock the module on another host to isolate module vs host.
- Replace the cable or refer the module.
Symptom: Module / pod not recognised
- Reseat the module / pod at the host or rack.
- Inspect the docking connector for bent pins.
- Try it in another host or slot.
- Try a known-good module in this slot.
- Refer the module or the host slot as isolated.
