Carestream Dryview 9650 Laser Imager

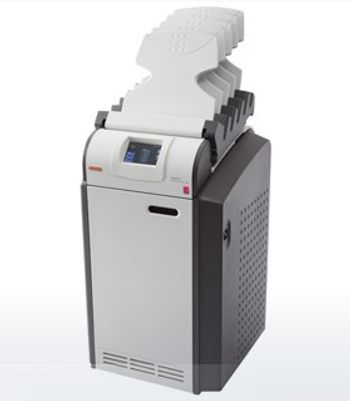

Carestream · Model Dryview 9650 Laser Imager
• Exceptional Image Quality • Delivers from 160 to 250 films per hours • Accommodates maximum film density of 4.0 preferred for mammography • Key test patterns assist with mammography quality assurance procedures and regulatory requirements • Built-in densitometer can eliminate the need for manual density measurements on test films • Accommodates three different film sizes and types online simultaneously • Compatible with Carestream Computed Radiography (CR) and Digital Radiography (DR) systems • Multilingual touch-screen user panel • Built-in Help interface simplifies instruction, operation and training • Minimal re-loading with cartridges that hold 125 film sheets
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Print head / thermal head wear
HighSymptoms: Streaking, missing lines, or degraded print quality.
Root cause: Thermal head element wear from print-cycle count.
Media jam / feed fault
MediumSymptoms: Paper, film, or media misfeed or jam mid-print.
Root cause: Worn feed rollers or debris in the media path.
Network / driver connectivity fault
MediumSymptoms: Won't receive print jobs from the connected workstation or modality.
Root cause: Network configuration, driver, or interface card fault.
Ribbon / ink / toner depletion
LowSymptoms: Faded, streaked, or blank output.
Root cause: Consumable exhausted or improperly seated.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Media feed roller set
Class Periodic replacementRel. cost $$R&R Fairly easy
Network interface / driver board
Class Major service partRel. cost $$$R&R Moderate
Print head / thermal head assembly
Class Periodic replacementRel. cost $$$R&R Moderate
Ribbon / ink or toner cartridge
Consumable - replace per print-volume schedule.
Class ConsumableRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Media feed roller set | Periodic replacement | $$ | Fairly easy |
| Network interface / driver board | Major service part | $$$ | Moderate |
| Print head / thermal head assembly | Periodic replacement | $$$ | Moderate |
| Ribbon / ink or toner cartridge Consumable - replace per print-volume schedule. | Consumable | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Print head / thermal head wear
- Confirm the presentation - typically streaking, missing lines, or degraded print quality.
- Check the most likely cause first: thermal head element wear from print-cycle count.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the print head / thermal head assembly per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Media jam / feed fault
- Confirm the presentation - typically paper, film, or media misfeed or jam mid-print.
- Check the most likely cause first: worn feed rollers or debris in the media path.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the ribbon / ink or toner cartridge per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Height
- 45.3 in without sorter
- Length
- 27 in without sorter
- Weight
- 325 lbs without sorter
- Time to First Film
- 60 sec
- Width
- 24.7 in without sorter
