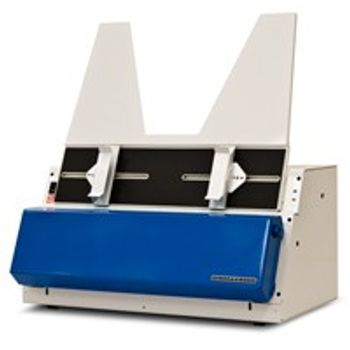

Ampronix Digimax DG8000
Ampronix · Model Digimax DG8000
Capable of digitizing both film and paper Smallest and lightest medical digitizer in the market Automatic Calibration feature, which activates before every scan Can process and deliver 65,536 shades of gray at full 16 bits Wall mount brackets, output tray and a catch basket are included with DG8000 to maximize your installation options
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Scanning laser / optics drift
HighSymptoms: Image noise, banding, or blank scans.
Root cause: Laser diode or optics contamination/aging.
Plate feed jam
MediumSymptoms: Imaging plate fails to feed, or jams mid-scan.
Root cause: Worn feed rollers or damaged plate.
Erase lamp failure
MediumSymptoms: Ghost image / residual latent image on reused plates.
Root cause: Erase lamp bulb end-of-life.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Erase lamp assembly
Class Periodic replacementRel. cost $$R&R Moderate
Imaging plate
Consumable; degrades with scan-cycle count.
Class Periodic replacementRel. cost $$$R&R Easy
Scanning laser / optics module
Class Major service partRel. cost $$$$R&R Expert-level
Plate feed roller set
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Erase lamp assembly | Periodic replacement | $$ | Moderate |
| Imaging plate Consumable; degrades with scan-cycle count. | Periodic replacement | $$$ | Easy |
| Scanning laser / optics module | Major service part | $$$$ | Expert-level |
| Plate feed roller set | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Scanning laser / optics drift
- Confirm the presentation - typically image noise, banding, or blank scans.
- Check the most likely cause first: laser diode or optics contamination/aging.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the scanning laser / optics module per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Plate feed jam
- Confirm the presentation - typically imaging plate fails to feed, or jams mid-scan.
- Check the most likely cause first: worn feed rollers or damaged plate.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the plate feed roller set per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
Documents & Manuals
No documents available for this device yet.
