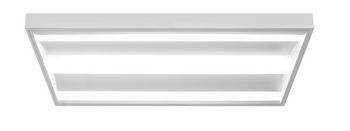

Amico Solar Eclipse Exam Light 2x4
Amico · Model Solar Eclipse Exam Light 2x4
Hospital grade material and finish Glare-free reflectors Exam light Optional amber night light Long lasting LEDs Seam welded enclosure.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Exam LED failure
MediumSymptoms: Light out, flickering, dim, or a dead section of the panel.
Root cause: Failed LED array or driver.
Night-light option fault
LowSymptoms: Amber night light not working while the exam light is fine.
Root cause: Separate night-light LED or its driver failed.
Reflector / lens degradation
LowSymptoms: Increased glare, reduced output, discoloured lens.
Root cause: Aged glare-free reflector or lens.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Exam LED array
Class Major service partRel. cost $$R&R Moderate
LED driver
Class Major service partRel. cost $R&R Moderate
Amber night-light module
Class Major service partRel. cost $R&R Moderate
Reflector / lens assembly
Class Major service partRel. cost $R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Exam LED array | Major service part | $$ | Moderate |
| LED driver | Major service part | $ | Moderate |
| Amber night-light module | Major service part | $ | Moderate |
| Reflector / lens assembly | Major service part | $ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Exam light out or dim
- Confirm power to the fixture.
- Isolate LED array vs driver.
- Replace the failed part.
- Verify full output.
- Check the night-light option separately.
Symptom: Night light not working
- Confirm the option is fitted.
- Check the night-light module and its driver.
- Replace the failed part.
- Verify amber output at the correct level.
- Confirm it is independent of the exam light.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
