American Diagnostic Corporation Proscope 5211
American Diagnostic Corporation · Model Proscope 5211

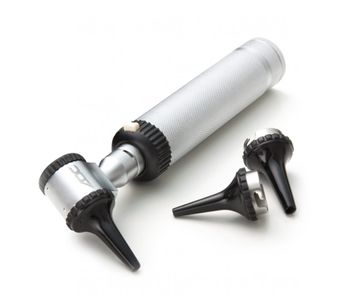

Bayonet locking otoscope head Removable 3x magnifying lens and insufflator fitting Rheostatic on/off switch Autoclavable, polypropylene ear specula in sizes 2.5mm, 3.5mm, and 4.5mm Knurled handle with a beautiful satin finish Compact instrument measures just under 7 1/2” and weighs approximately 7 oz. Powered by 2 “C” cell batteries (not included) Comes with zippered storage case that holds the otoscope and included speculum Inspected, assembled, and packaged in the U.S.A. from foreign components One-year warranty
Key tips
- ·Verify laser output with a real power meter, not the unit's own display - the display can drift independently of true output.
- ·Take "the image looks a little off" reports seriously - optical alignment drift is usually gradual, not sudden.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Light source / lamp failure
MediumSymptoms: Dim or no illumination.
Root cause: Xenon/halogen bulb aging.
Battery handle / switch fault
MediumSymptoms: Won't power on, intermittent light.
Root cause: Battery contact corrosion or switch wear.
Lens wheel / dial fault
LowSymptoms: Won't select correct diopter, sticky dial.
Root cause: Mechanical wear or debris.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Disposable ear specula
Consumable, per patient.
Class ConsumableRel. cost $R&R Easy
Replacement bulb / lamp
Consumable.
Class Periodic replacementRel. cost $R&R Easy
Battery handle
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Disposable ear specula Consumable, per patient. | Consumable | $ | Easy |
| Replacement bulb / lamp Consumable. | Periodic replacement | $ | Easy |
| Battery handle | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Optical alignment / calibration check
- ·Lamp or laser output verification
- ·Annual full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Light source / lamp failure
- Confirm the presentation - typically dim or no illumination - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: xenon/halogen bulb aging.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the replacement bulb / lamp per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Lens wheel / dial fault
- Confirm the presentation - typically won't select correct diopter, sticky dial - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: mechanical wear or debris.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the battery handle per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Eye clinic / ophthalmology suite
- Operating Room (ophthalmic surgery)
