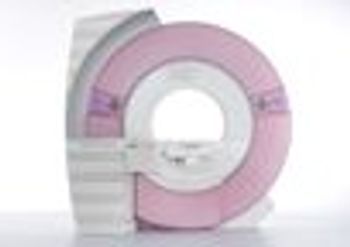

Siemens MAGNETOM Espree Pink 1.5T
Siemens Healthineers · Model MAGNETOM Espree Pink 1.5T
MAGNETOM Espree – Pink 1.5T - Clinical Application Pink Applications Faster imaging, superior clinical detail, shorter exams – these are all part of the next generation of breast care. With its optimized applications, MAGNETOM Espree – Pink enables users to see more, by improving accuracy and showing more details. These applications enable truly comprehensive breast care, helping to improve diagnostic confidence as well as patient care. Isotropic 3D imaging is essential when it comes to high-quality multiplanar image reconstruction in any orientation. syngo VIEWS (Volume Imaging with Enhanced Water Signal) provides isotropic imaging protocols with high temporal and high spatial resolution as well as excellent fat suppression. Users can acquire images bilaterally or unilaterally with excellent coverage of the retrosternal axillae. To ensure the best possible patient care, staging the disease extent is crucial. syngo REVEAL is a Siemens MR diffusion technique which improves specificity. By aquiring ADC maps it allows users to visualize potentially malignant lesions as well as metastatic infiltrations of lymph nodes and residual or recurrent tumors. Although it adds just a few minutes to the examination, syngo REVEAL with iPAT acceleration can improve diagnostic confidence and influence therapy planning. High-quality images in breast MRI – even in the case of severe patient movement. syngo BLADE offers a unique way to compensate for motion in non-dynamic data acquisition: By acquiring radial blades, it measures and corrects motion artifacts, providing clear, high-resolution images. syngo BLADE works in all contrasts and is iPAT-compatible, which shortens exam time and leads to reduced motion artifacts. Avoid repeat exams due to anxious patients and motion artifacts and improve their workflow and patient throughput. High levels of choline are often found in malignant breast lesions on MR spectroscopy. syngo GRACE is an advanced, single-voxel MR spectroscopy tool dedicated to breast evaluation. It offers two push-button methods for relative quantification of the total choline signal in the breast: internal (water) reference and external (sample) reference. This relative quantification produces a reliable value of the choline signal – independent of measurement conditions. In this way, syngo GRACE can provide information about treatment efficacy, helping to improve therapy monitoring. Openness. What could better ease patient anxiety – particularly for claustrophobic or obese patients? MAGNETOM Espree – Pink’s open-bore design offers an industry-leading 70 cm inner diameter. This unparalleled design provides exceptional comfort, enabling patients to feel more at ease. But it doesn’t stop there. The system’s design enables feet-first and head-first positioning, whichever is more appropriate for user's patient. Yet, users can still obtain the exceptional imaging they need. The coil design of the Sentinelle Vanguard for Siemens is perfect for MAGNETOM Espree – Pink, offering users excellent access to perform biopsies. At only 125 cm, MAGNETOM Espree – Pink is the shortest system on the market, offering high flexibility and increased patient comfort. Patients can be examined in feet-first position as well as in head-first position.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
RF coil fault / poor SNR
HighSymptoms: Low signal-to-noise, shading, or a dead region in images; coil not detected or fails the coil check.
Root cause: Damaged RF coil element, a coil-cable / connector fault, or a preamp fault.
Gradient fault / image distortion
HighSymptoms: Geometric distortion, gradient-amplifier faults, acoustic change, over-temperature trips.
Root cause: Gradient-amplifier fault, gradient-coil cooling problem, or a gradient-coil fault.
Cryogen / cold-head / compressor fault
HighSymptoms: Rising helium boil-off, cold-head noise or stall, He level dropping, compressor alarms.
Root cause: Cold-head at end of life, a helium-compressor fault, or a chilled-water problem.
Chilled water / cooling fault
MediumSymptoms: System-cooling alarms, gradient or RF over-temperature, scans aborting.
Root cause: Facility chilled-water supply, the heat exchanger, or internal pumps.
Patient table / positioning fault
MediumSymptoms: Table will not dock, drive or index; landmarking errors.
Root cause: Table drive, docking sensor, or encoder fault.
Reconstruction / host / network fault
MediumSymptoms: Recon errors, host hangs, images will not reach PACS.
Root cause: Recon or host computer fault, or the network / storage.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
RF receive coil (exchange)
Class Major service partRel. cost $$$$R&R Moderate
Cold head
Planned replacement; He boil-off rises as it wears.
Class Periodic replacementRel. cost $$$$R&R Difficult
Helium compressor / adsorber
Class Major service partRel. cost $$$$R&R Difficult
Gradient amplifier module
Class Major service partRel. cost $$$$R&R Expert-level
Chilled-water pump / heat exchanger
Class Major service partRel. cost $$$R&R Difficult
Patient table drive / encoder
Class Major service partRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| RF receive coil (exchange) | Major service part | $$$$ | Moderate |
| Cold head Planned replacement; He boil-off rises as it wears. | Periodic replacement | $$$$ | Difficult |
| Helium compressor / adsorber | Major service part | $$$$ | Difficult |
| Gradient amplifier module | Major service part | $$$$ | Expert-level |
| Chilled-water pump / heat exchanger | Major service part | $$$ | Difficult |
| Patient table drive / encoder | Major service part | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Poor SNR or a dead region with one coil
- Swap in a known-good coil of the same type and repeat the scan.
- Run the coil-check / coil-QA tool.
- Inspect the coil housing and cable for damage; reseat the connector.
- Scan the ACR / QA phantom and compare SNR to baseline.
- Quarantine and exchange the faulty coil.
Symptom: Rising helium boil-off or cold-head noise
- Log the helium level and boil-off trend daily.
- Check the cold-head sound and the compressor pressures against spec.
- Confirm the chilled-water supply temperature and flow.
- Schedule a cold-head / compressor service before the level reaches the OEM action point.
- Never let the magnet approach a quench threshold - escalate urgently.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
