Scienscope Microscopes Scienscope CMO-PK5E-DPL
Scienscope Microscopes · Model Scienscope CMO-PK5E-DPL

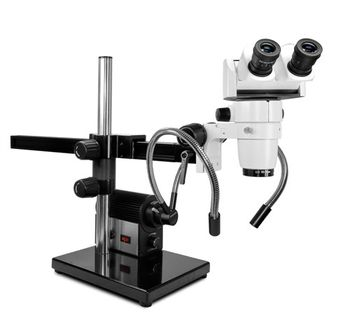

E-Series 0-45 Degree Tilting Head, Boom Mount, Dual Pipe Light The Scienscope CMO-PK5E-DPL is equipped with a tilting head, capable of 45 degree tilt. With a boom mount, the binocular microscope uses fiber optic dual pipe light and a gliding arm boom stand. The Parallel Zoom Stereo microscope unit has eyepieces, capable of 10x magnification and operates with a 1:6 zoom body (0.8x-5x). This Scienscope CMO-PK5E-DPL unit also uses a 0.5x achromatic objective lens and a LED illuminator. The unit can be upgraded to Trinocular or Video Camera Port microscope.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Illumination failure or dim / uneven (ring / dual-pipe light)
MediumSymptoms: No or dim light, uneven field, colour shift.
Root cause: LED ring / fibre illuminator or its driver at end of life.
Zoom / magnification changer fault
MediumSymptoms: Zoom will not run smoothly through its range, image jumps or blurs at a step.
Root cause: Worn zoom mechanism or detent.
Boom / arm stand drift
MediumSymptoms: The stereo head drifts down or will not stay positioned on the boom arm.
Root cause: Worn arm friction or a loose clamp.
Optics contamination
LowSymptoms: Haze, spots, reduced clarity.
Root cause: Dust or fingerprints on the objective / eyepieces.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
LED ring / fibre illuminator
Class Periodic replacementRel. cost $$R&R Fairly easy
Illumination driver / power supply
Class Major service partRel. cost $$R&R Moderate
Zoom mechanism
Class Major service partRel. cost $$$R&R Difficult
Boom-arm friction / clamp kit
Class Major service partRel. cost $$R&R Moderate
Objective / auxiliary lens
Class Major service partRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| LED ring / fibre illuminator | Periodic replacement | $$ | Fairly easy |
| Illumination driver / power supply | Major service part | $$ | Moderate |
| Zoom mechanism | Major service part | $$$ | Difficult |
| Boom-arm friction / clamp kit | Major service part | $$ | Moderate |
| Objective / auxiliary lens | Major service part | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Illuminator out or dim
- Confirm mains power and the illuminator switch.
- Check the driver output.
- Replace the driver if the source is unpowered.
- Replace the LED ring / fibre illuminator at end of life.
- Verify even, full-brightness illumination.
Symptom: Zoom binds or head drifts
- Clean the zoom control and the boom-arm interface.
- Adjust the arm friction / clamp.
- Replace the zoom mechanism if it will not run smoothly.
- Replace the arm friction kit if the head will not hold.
- Confirm smooth zoom and a firm hold.
Technical Specs
- Microscope Type
- Stereo
- Field of view
- 57.5 to 9.2 mm
- Eyepiece Magnification
- 10x
- Viewing Head
- Binocular
