Scienscope Microscopes CMO-PK5-DPL
Scienscope Microscopes · Model CMO-PK5-DPL

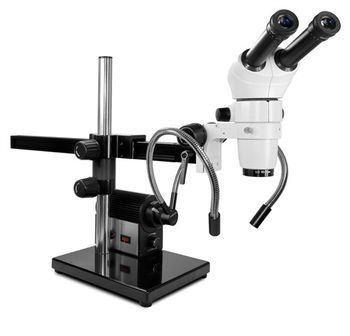

E-Series 20 Degree Head, Boom Mount, Dual Pipe Light The Scienscope CMO-PK5-DPL E-series microscope is a Parallel Zoom Stereo microscope with a 20 degree fixed head and a gliding arm boom stand. The binocular microscope comes with 10x eyepieces and 1:6 zoom body, capable of 0.8x-5x magnification. With a 0.5x achromatic objective lens, the Scienscope CMO-PK5-DPL uses a fiber optic dual pipe light and 76 mm focus mount. The Scienscope CMO-PK5-DPL microscope, similar to other models of the E-series, can be upgraded to a Trinocular or Video Camera Port microscope.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Illumination failure or dim / uneven (ring / dual-pipe light)
MediumSymptoms: No or dim light, uneven field, colour shift.
Root cause: LED ring / fibre illuminator or its driver at end of life.
Zoom / magnification changer fault
MediumSymptoms: Zoom will not run smoothly through its range, image jumps or blurs at a step.
Root cause: Worn zoom mechanism or detent.
Boom / arm stand drift
MediumSymptoms: The stereo head drifts down or will not stay positioned on the boom arm.
Root cause: Worn arm friction or a loose clamp.
Optics contamination
LowSymptoms: Haze, spots, reduced clarity.
Root cause: Dust or fingerprints on the objective / eyepieces.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
LED ring / fibre illuminator
Class Periodic replacementRel. cost $$R&R Fairly easy
Illumination driver / power supply
Class Major service partRel. cost $$R&R Moderate
Zoom mechanism
Class Major service partRel. cost $$$R&R Difficult
Boom-arm friction / clamp kit
Class Major service partRel. cost $$R&R Moderate
Objective / auxiliary lens
Class Major service partRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| LED ring / fibre illuminator | Periodic replacement | $$ | Fairly easy |
| Illumination driver / power supply | Major service part | $$ | Moderate |
| Zoom mechanism | Major service part | $$$ | Difficult |
| Boom-arm friction / clamp kit | Major service part | $$ | Moderate |
| Objective / auxiliary lens | Major service part | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Illuminator out or dim
- Confirm mains power and the illuminator switch.
- Check the driver output.
- Replace the driver if the source is unpowered.
- Replace the LED ring / fibre illuminator at end of life.
- Verify even, full-brightness illumination.
Symptom: Zoom binds or head drifts
- Clean the zoom control and the boom-arm interface.
- Adjust the arm friction / clamp.
- Replace the zoom mechanism if it will not run smoothly.
- Replace the arm friction kit if the head will not hold.
- Confirm smooth zoom and a firm hold.
Technical Specs
- Microscope Type
- Stereo
- Field of view
- 57.5 to 9.2 mm
- Eyepiece Magnification
- 10x
- Viewing Head
- Binocular
