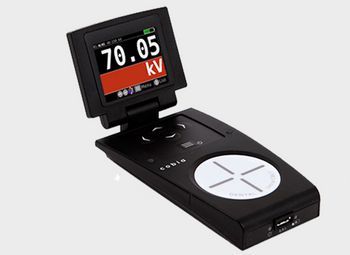

RTI Group North America Cobia Dental
RTI Group North America · Model Cobia Dental
Li.li1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Carlito; color: #191c1f} span.s1 {font: 10.0px Symbol} span.s2 {background-color: #ffffff} ul.ul1 {list-style-type: disc} Easy to position with no position dependence Large, rotatable display Log/History function "Plug n Play" function Pulsed radiation analysis Full Auto range for kV, TF, and Sensitivity Bluetooth and USB communication Solid-state detectors = no need to compensate for temperature & pressure Built-in energy compensation Long-lasting rechargeable battery Always free firmware upgrades Up to ten-year warranty Two-year Calibration Cycle.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Out of calibration / accuracy suspect
HighSymptoms: Readings disagree with a reference standard, verification check outside tolerance.
Root cause: Normal drift - the instrument needs its scheduled factory / accredited calibration (at least every 12 months).
Will not power on / battery fault
MediumSymptoms: Dead unit, short battery life, will not charge.
Root cause: Depleted or aged battery, or a power / charger fault.
Test lead / probe / adapter fault
MediumSymptoms: Open or intermittent readings, connection errors, a specific function fails.
Root cause: Worn or broken test leads, mains adapters, patient-lead adapters, or a sensor cable.
A measurement / simulation function fails
MediumSymptoms: One parameter (leakage, insulation, ECG / SpO2 / IBP simulation, defib / pacer energy, ventilator flow / pressure, light / dose) errors or is out of range while others work.
Root cause: An internal source / measurement circuit fault on that channel.
PC / software communication fault
LowSymptoms: The automation / logging software will not connect.
Root cause: USB cable / port or driver.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Test-lead / adapter set
Class Periodic replacementRel. cost $$R&R Easy
Battery
Class Periodic replacementRel. cost $$R&R Easy
Calibration (factory / accredited)
At least every 12 months per the manufacturer.
Class Frequent wear itemRel. cost $$R&R Easy
Communication cable
Class Periodic replacementRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Test-lead / adapter set | Periodic replacement | $$ | Easy |
| Battery | Periodic replacement | $$ | Easy |
| Calibration (factory / accredited) At least every 12 months per the manufacturer. | Frequent wear item | $$ | Easy |
| Communication cable | Periodic replacement | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Accuracy suspect / verification check outside tolerance
- Confirm the instrument's calibration certificate is within date (at least every 12 months).
- Verify against a known reference - a decade box, a reference meter, or a second analyser.
- Check the test leads, mains adapters and patient-lead adapters for damage and reseat them.
- If a single function is out (leakage, insulation, a simulation channel, energy, flow / pressure, light / dose), note it for the calibration lab.
- Send the unit for its scheduled factory / accredited calibration if it is due or fails verification.
Symptom: A measurement or simulation function fails while others work
- Repeat the failing function into a known load / source / reference.
- Swap the associated lead / adapter / sensor cable.
- Update the firmware if an update addresses it.
- Check the internal battery / supply is healthy.
- Return the unit for repair of that channel.
Symptom: Will not power on / short battery life
- Fit fresh batteries or confirm the AC adapter output.
- Check the fuse and power switch.
- Try a different outlet / adapter.
- Replace the battery pack.
- Refer the power supply if it will not run on a known-good adapter.
Symptom: PC / logging software will not connect
- Reseat the USB / serial cable and try another port.
- Confirm the driver and the COM-port / baud settings.
- Restart the software and the instrument.
- Try a known-good cable.
- Update the software / firmware to compatible versions.
Technical Specs
- Height
- 138 mm3
- Length
- 76 mm3
- Weight
- 290 g
- Width
- 27 mm3
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
Documents & Manuals
Safety & Recalls
Synced live from the FDA openFDA API.
- RECALL
Incorrect instructions for use (IFU) included.
- RECALL
RTI Surgical, Inc. of Alachua, FL is recalling their OPTEFORM Allograft Paste, 5cc as it may contain a 10 cc fluid dispenser. The 10cc fluid dispenser does not include the correct fluid fill line reference for reconstitution of 5cc past allografts.
