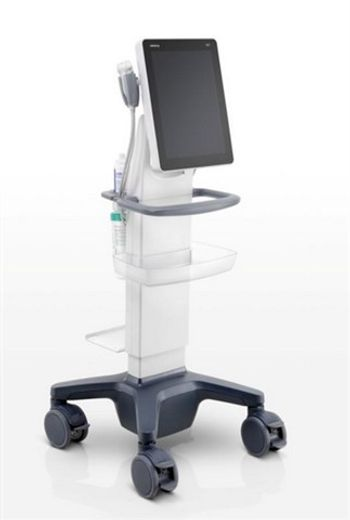

Mindray TE7
Mindray · Model TE7
[u]Touch Enabled Response[/u] User-defined functionality provides a new standard of point-of-care ultrasound. State-of-the-art fingertip operation, even with gel covered gloves, provides simple control and setting optimization at the swipe of a finger. [u]Touch-screen Gestures[/u] With touch screen gestures: tap to open or close functions, drag to adjust parameters, move objects, pinch to zoom in or out, slide for multi-selection, and even swipe to expand the image…all with a fingertip. A unique simple, yet smart ultrasound system for point-of-care. [u]Touch Wake Up[/u] 3 seconds boot up from standby by one touch [u]3T Transducer Technology[/u] Mindray’s patent transducer technology to increase image bandwidth and transmission efficiency. Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution Thermal-control design for better acoustic transmission [u]PSH (Phase Shift Harmonic Imaging)[/u] Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise [u]iBeam[/u] Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization [u]iClear[/u] Gain improved image quality based on auto structure detection Sharper & Continuous Edges Smooth Uniform Tissues Cleaner ‘no echo areas’ B-Steer/ iNeedle The tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels. [u]iTouch[/u] Gain instant auto image optimization in B, Color and PW Modes on the touch of a single key [u]Smart Track[/u] Mindray’s unique function: Continuously track the color flow and optimize the best Color box position and angle in real time scanning. [u]iZoom[/u] Gain instant full screen view by a swipe [u]iStation[/u] Mindray’s unique Patient Information Management System allowing users to integrate, review, archive and retrieve patient data effectively [u]MedSight[/u] Interactive App that could transfer clinical images/cines and reports from TE7 to IOS smart devices via WiFi [u]Ergonomic Design[/u] 15’’ touch screen with anti-glare and wide viewing angle Max three transducer connectors for on-screen transducer selection Convenient accessory supply bins Built-in battery and built-in wireless network Unique retractable power cable for extended range and efficient transport and storage
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Transducer element failure
MediumSymptoms: Dropout, dead elements, image banding.
Root cause: Element delamination or cable damage from repeated use.
Transducer cable / connector wear
MediumSymptoms: Intermittent image loss, connector-wiggle artifact.
Root cause: Repeated flexing and connector strain.
Recon / system software hang
LowSymptoms: Frozen console, acquisition timeout.
Root cause: Workstation or storage degradation.
Display panel degradation
LowSymptoms: Dim image, color shift, dead pixels.
Root cause: Backlight or LCD panel aging.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Display panel
Class Major service partRel. cost $$R&R Moderate
Ultrasound transducer / probe
Handle with care; most-replaced probe assembly.
Class Periodic replacementRel. cost $$$$R&R Moderate
Transducer cable assembly
Class Periodic replacementRel. cost $$R&R Fairly easy
Workstation / GPU
Class Periodic replacementRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Display panel | Major service part | $$ | Moderate |
| Ultrasound transducer / probe Handle with care; most-replaced probe assembly. | Periodic replacement | $$$$ | Moderate |
| Transducer cable assembly | Periodic replacement | $$ | Fairly easy |
| Workstation / GPU | Periodic replacement | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Transducer element failure
- Confirm the presentation - typically dropout, dead elements, image banding - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: element delamination or cable damage from repeated use.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the ultrasound transducer / probe per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Transducer cable / connector wear
- Confirm the presentation - typically intermittent image loss, connector-wiggle artifact - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: repeated flexing and connector strain.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the transducer cable assembly per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
