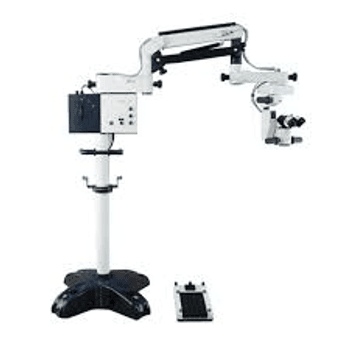

Leica Microsystems MS2 M500
Leica Microsystems · Model MS2 M500
Face to Face Optics Clutch Release Floorstand Binocular Rotatable 0-180 degrees Objective Lens Integrated 207mm – 407mm Working Distance Magnification Motorized Focus and Zoom 10x Widefield eyepieces Lightsource Integrated 300W Xenon With Halogen Back-up Mounting System Floorstand with Six Electromagnetic Brakes Automatic Balancing.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Illumination failure or dim / uneven light
HighSymptoms: No or dim light, sudden loss during a procedure, colour shift, uneven field.
Root cause: LED light engine or its driver / power supply at end of life, or a lamp-turret fault.
Suspension / swing-arm drift
HighSymptoms: Microscope head drifts or will not hold position, worse after an accessory change.
Root cause: Arm not re-balanced after adding/removing a camera, tube or splitter, or worn magnetic / friction brakes.
Motorised zoom / focus fault
MediumSymptoms: Zoom or focus will not run or is erratic from the foot control or handgrips.
Root cause: Zoom/focus motor, foot-control switch, handgrip, or cabling.
Optics contamination / fogging
LowSymptoms: Hazy or low-contrast image, spots in the field.
Root cause: Dust or fingerprints on the objective protective glass or oculars, or condensation.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
LED light engine
Class Major service partRel. cost $$$R&R Moderate
LED driver / power supply
Class Major service partRel. cost $$R&R Moderate
Swing-arm magnetic / friction brake & balance assembly
Class Major service partRel. cost $$$R&R Difficult
Zoom / focus motor assembly
Class Major service partRel. cost $$$R&R Difficult
Objective protective glass
Class Periodic replacementRel. cost $R&R Easy
Mains fuse
Class Major service partRel. cost $R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| LED light engine | Major service part | $$$ | Moderate |
| LED driver / power supply | Major service part | $$ | Moderate |
| Swing-arm magnetic / friction brake & balance assembly | Major service part | $$$ | Difficult |
| Zoom / focus motor assembly | Major service part | $$$ | Difficult |
| Objective protective glass | Periodic replacement | $ | Easy |
| Mains fuse | Major service part | $ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: No or dim light
- Confirm mains power and the illuminator switch.
- Check the LED driver / power-supply output.
- Replace the driver if the LED engine is unpowered, or the engine for a failed emitter.
- Confirm the light engine is fully seated.
- Verify even, full-brightness illumination and correct colour temperature.
Symptom: Head will not hold position
- Re-balance the swing arm for the current accessory load per the manual - never over the operating field.
- Adjust the arm brakes.
- Replace the brake / balance assembly if it will not hold.
- Return the arm to the transport position when moving the stand.
- Confirm the head stays put across the working range.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
