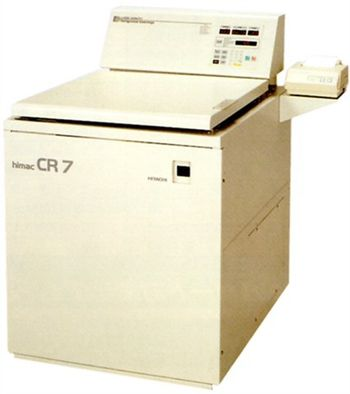

Hitachi Medical Systems himac CR7
Hitachi Medical Systems · Model himac CR7
High-capacity carbon fiber rotor (R7A) • 1,000 ml x 6 bottles • Max. 7,000 rpm (11,100 x g) • To be used exclusively with a wide-mouth 1-liter bottle High-capacity swing rotor (R5S3) • 400 ml MAP bag x 12 units can be processed at a time. • Max. 4,200 rpm (5,030 x g) • For blood component separation use at blood centers, etc. Advanced technology • Memory operation • Stores 30 sets of operating parameters. • Net run time input • Because the timer starts simultaneously with attainment of the selected speed, net operation time can be realized (patent pending). • Convenient functions are standard features • RCF calculation • Memory lock function • g• sec. calculation • Step operation input • Numerous safety devices and self-diagnosis functions are standard • Door opening/closing detection • Imbalance detection • Overspeed detection • Rotor setting abnormality detection • Temperature control abnormality detection • Power source abnormality detection • Motor rotation abnormality detection
Key tips
- ·Run QC controls before trusting any repair - an analyzer that passes self-test can still report clinically wrong results.
- ·Rule out a reagent lot change before opening the instrument - it can look exactly like a hardware fault.
- ·Centrifuge rotors have a hard retirement age/cycle limit regardless of visible condition - don't eyeball it.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Sample probe / pipette clog
MediumSymptoms: Aspiration error, short sample, carryover.
Root cause: Clot/crystal obstruction.
Centrifuge imbalance / bearing
HighSymptoms: Vibration, loud noise, stop error.
Root cause: Worn bearing or unbalanced rotor.
Temperature control fault
MediumSymptoms: Incubator out of range.
Root cause: Failed heater/fan or sensor.
Optics / lamp degradation
LowSymptoms: Low signal, wavelength drift.
Root cause: Lamp/LED or monochromator aging.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Sample aspiration probe
Frequent R&R on high-throughput analyzers.
Class Periodic replacementRel. cost $$$R&R Moderate
Peristaltic pump tubing
Consumable - replace proactively.
Class Frequent wear itemRel. cost $R&R Easy
Xenon / LED light source
Class Periodic replacementRel. cost $$$R&R Moderate
Centrifuge rotor & bearings
Class Major service partRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Sample aspiration probe Frequent R&R on high-throughput analyzers. | Periodic replacement | $$$ | Moderate |
| Peristaltic pump tubing Consumable - replace proactively. | Frequent wear item | $ | Easy |
| Xenon / LED light source | Periodic replacement | $$$ | Moderate |
| Centrifuge rotor & bearings | Major service part | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC controls run and reviewed
- ·Calibration verification per assay
- ·Routine cleaning and decontamination
- ·Scheduled reagent-path and pump-tubing maintenance
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Sample probe / pipette clog
- Confirm the presentation - typically aspiration error, short sample, carryover - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: clot/crystal obstruction.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the sample aspiration probe per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Reagent / wash flow fault
- Confirm the presentation - typically clogs, high blank, QC fail - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: pump tube wear, air in line.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the peristaltic pump tubing per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Technical Specs
- Height
- 1150 mm
- Length
- 910 mm
- Weight
- 300 kg
- Centrifuge Type
- High Speed
- Maximum Speed
- 7000 rpm
- Width
- 730 mm
