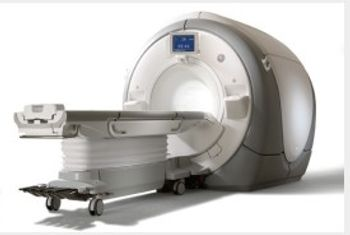

GE HealthCare Discovery MR750
GE HealthCare · Model Discovery MR750
High performance whole-body gradients designed to deliver powerful 50 mT/m amplitude and 200 T/m/s slew-rate on each axis simultaneously ARC parallel-imaging, which utilizes a full 3D data kernel for more accurate reconstruction A volume-reconstruction engine that enables real-time image generation OpTix optical RF technology, engineered to increase signal clarity and maximize signal intensity PERFORM 2.0, which automatically fine-tunes system SAR modeling and personalizes it for each patient The eXtreme resonance module (XRM), which delivers a 48-cm field of view with linearity VIBRANT Flex technology, which combines multiple series of breast scans into one Time of Flight (TOF) imaging, which rapidly captures high-definition images that display small-vessel detail and blood-flow subtleties - without contrast injections IntelliTouch patient positioning - start scanning in just two steps. BrainWave suite of functional MRI (fMRI) applications, which provide excellent signal stability, and an exceptional signal-to-noise ratio.
Intended use: High performance whole-body gradients designed to deliver powerful 50 mT/m amplitude and 200 T/m/s slew-rate on each axis simultaneously ARC parallel-imaging, which utilizes a full 3D data kernel for more accurate reconstruction A volume-reconstruction engine that enables real-time image generation OpTix optical RF technology, engineered to increase signal clarity and maximize signal intensity PERFORM 2.0, which automatically fine-tunes system SAR modeling and personalizes it for each patient The eXtreme resonance module (XRM), which delivers a 48-cm field of view with linearity VIBRANT Flex technology, which combines multiple series of breast scans into one Time of Flight (TOF) imaging, which rapidly captures high-definition images that display small-vessel detail and blood-flow subtleties—without contrast injections IntelliTouch patient positioning—start scanning in just two steps. BrainWave suite of functional MRI (fMRI) applications, which provide excellent signal stability, and an exceptional signal-to-noise ratio.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
RF coil fault / poor SNR
HighSymptoms: Low signal-to-noise, shading, or a dead region in images; coil not detected or fails the coil check.
Root cause: Damaged RF coil element, a coil-cable / connector fault, or a preamp fault.
Gradient fault / image distortion
HighSymptoms: Geometric distortion, gradient-amplifier faults, acoustic change, over-temperature trips.
Root cause: Gradient-amplifier fault, gradient-coil cooling problem, or a gradient-coil fault.
Cryogen / cold-head / compressor fault
HighSymptoms: Rising helium boil-off, cold-head noise or stall, He level dropping, compressor alarms.
Root cause: Cold-head at end of life, a helium-compressor fault, or a chilled-water problem.
Chilled water / cooling fault
MediumSymptoms: System-cooling alarms, gradient or RF over-temperature, scans aborting.
Root cause: Facility chilled-water supply, the heat exchanger, or internal pumps.
Patient table / positioning fault
MediumSymptoms: Table will not dock, drive or index; landmarking errors.
Root cause: Table drive, docking sensor, or encoder fault.
Reconstruction / host / network fault
MediumSymptoms: Recon errors, host hangs, images will not reach PACS.
Root cause: Recon or host computer fault, or the network / storage.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
RF receive coil (exchange)
Class Major service partRel. cost $$$$R&R Moderate
Cold head
Planned replacement; He boil-off rises as it wears.
Class Periodic replacementRel. cost $$$$R&R Difficult
Helium compressor / adsorber
Class Major service partRel. cost $$$$R&R Difficult
Gradient amplifier module
Class Major service partRel. cost $$$$R&R Expert-level
Chilled-water pump / heat exchanger
Class Major service partRel. cost $$$R&R Difficult
Patient table drive / encoder
Class Major service partRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| RF receive coil (exchange) | Major service part | $$$$ | Moderate |
| Cold head Planned replacement; He boil-off rises as it wears. | Periodic replacement | $$$$ | Difficult |
| Helium compressor / adsorber | Major service part | $$$$ | Difficult |
| Gradient amplifier module | Major service part | $$$$ | Expert-level |
| Chilled-water pump / heat exchanger | Major service part | $$$ | Difficult |
| Patient table drive / encoder | Major service part | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Poor SNR or a dead region with one coil
- Swap in a known-good coil of the same type and repeat the scan.
- Run the coil-check / coil-QA tool.
- Inspect the coil housing and cable for damage; reseat the connector.
- Scan the ACR / QA phantom and compare SNR to baseline.
- Quarantine and exchange the faulty coil.
Symptom: Rising helium boil-off or cold-head noise
- Log the helium level and boil-off trend daily.
- Check the cold-head sound and the compressor pressures against spec.
- Confirm the chilled-water supply temperature and flow.
- Schedule a cold-head / compressor service before the level reaches the OEM action point.
- Never let the magnet approach a quench threshold - escalate urgently.
Technical Specs
- Magnet Type
- Superconducting
- Weight
- 9750 kg
- Clinical Use
- Whole Body
- Gantry (Max. Clearance)
- 60 cm
- Magnetic Field Strength
- 3 T
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
