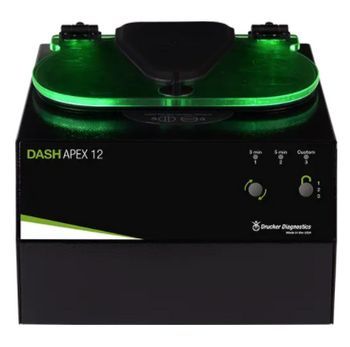

Electronic Timer – 3 easily selectable pre-set cycles (default or custom) Capacity – Up to twelve (12) tubes Tube Sizes – 3 mL to 10 mL: up to 17 mm x 75 – 100 mm Brushless DC Motor – Years of operation with no routine maintenance 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations Reinforced Guard Bowl – Provides maximum safety and durability Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards.
Key tips
- ·Run QC controls before trusting any repair - an analyzer that passes self-test can still report clinically wrong results.
- ·Rule out a reagent lot change before opening the instrument - it can look exactly like a hardware fault.
- ·Centrifuge rotors have a hard retirement age/cycle limit regardless of visible condition - don't eyeball it.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Will not start / error at start
HighSymptoms: Error code, run will not begin, or aborts shortly after start.
Root cause: Set speed exceeds the rotor maximum, an imbalanced load, the lid / door not locked, an unapproved rotor, or a drive / control fault.
Will not reach speed / excessive noise or vibration
MediumSymptoms: Slow spin-up, rumble, or vibration during a run.
Root cause: Load imbalance, worn drive / motor bearings, a worn drive coupling, or (older units) worn motor brushes.
Timer / speed inconsistency
MediumSymptoms: Run ends early / late, or RPM does not match the setting.
Root cause: Tacho / speed-sensor drift or a control-board fault.
Lid / door will not open or lock
MediumSymptoms: Lid-lock error, will not open after a run, or will not lock to start.
Root cause: Lid-lock solenoid / switch fault, or a run still winding down.
Rotor / bucket wear or corrosion
MediumSymptoms: Visible corrosion, cracks, or a bucket that will not swing; imbalance trips.
Root cause: Rotor / bucket ageing - a safety-critical wear item with a use-life limit.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Drive / motor bearings & coupling
Class Major service partRel. cost $$$R&R Difficult
Lid-lock solenoid / switch
Class Major service partRel. cost $$R&R Moderate
Speed sensor / control board
Class Major service partRel. cost $$R&R Moderate
Motor brushes (older units)
Class Periodic replacementRel. cost $R&R Moderate
Rotor / bucket set & O-rings
Log rotor runs; retire per the manufacturer's rotor-life programme.
Class Major service partRel. cost $$$R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Drive / motor bearings & coupling | Major service part | $$$ | Difficult |
| Lid-lock solenoid / switch | Major service part | $$ | Moderate |
| Speed sensor / control board | Major service part | $$ | Moderate |
| Motor brushes (older units) | Periodic replacement | $ | Moderate |
| Rotor / bucket set & O-rings Log rotor runs; retire per the manufacturer's rotor-life programme. | Major service part | $$$ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC controls run and reviewed
- ·Calibration verification per assay
- ·Routine cleaning and decontamination
- ·Scheduled reagent-path and pump-tubing maintenance
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Will not start / error at start
- Confirm mains power, the mains switch, and check the instrument fuse / circuit breaker - replace a blown fuse (a second blown fuse means an internal fault).
- Confirm the lid is fully closed and the lid interlock is engaging.
- Confirm a speed and time (and an approved rotor) are set.
- Note any displayed error code and look it up in the manual's error table.
- Re-balance the load if an imbalance is indicated.
Symptom: Lid will not open
- Confirm the rotor has fully stopped and mains power is present.
- Press down on the front of the lid while pressing the release button.
- If a power failure, use the mechanical emergency lid release per the manual.
- Inspect the lid-lock solenoid / latch and its micro-switch.
- Replace a jammed or faulty lid-lock assembly.
Symptom: Excess vibration / will not reach speed / noise
- Stop and re-load the rotor symmetrically - opposing positions equally loaded, all carriers fitted.
- Inspect the rotor pockets and chamber for debris or a broken tube.
- Confirm the rotor is fully seated and not corroded or cracked (retire per its use-life log).
- Turn the rotor by hand and feel the drive bearing; on belt-drive units check belt tension and, on older units, the motor brushes.
- Verify speed with a tachometer after any drive work.
