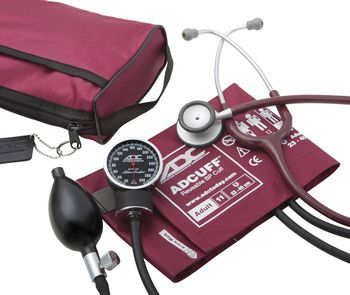

American Diagnostic Corporation Pro's Combo V
American Diagnostic Corporation · Model Pro's Combo V
Combines ADC's Diagnostix 720 with a lightweight clinician scope and deluxe carry case Premium aneroid manometer that exceeds ANSI/AAMI/ISO 81060-1 specifications for accuracy backed by a LIFETIME calibration warranty Adcuff nylon cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing. Color matched to the scope and case Color coordinated, matching professional Adscope-lite 609 stethoscope with 5 year quality performance warranty Extra large, color-matched dual pocket nylon carry case Not made with natural rubber latex Ideal for nurses, PA’s, and EMT’s Five-year quality performance guarantee on Adscope-lite covers all parts, lifetime calibration warranty, and three-year warranty on Adcuff inflation system Assembled, inspected, and packaged in the U.S.A. from foreign components Meets or exceeds ANSI/AAMI/ISO 81060-1 Now shipped in our premium Pro's Combo+ packaging, an elegant four-piece “gift box” design, beautifully finished with an embossed foil logo.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Aneroid gauge out of calibration
MediumSymptoms: Reads high or low vs a reference, needle off zero at rest.
Root cause: Wear or shock to the Diagnostix 720 / 802 gauge movement.
Cuff bladder or tubing leak
MediumSymptoms: Pressure will not hold, slow drop on the gauge.
Root cause: Perforated bladder, cracked two-tube set, or a leaking connector.
ADFLOW air-release valve fault
MediumSymptoms: Bulb will not build pressure, deflates too fast or not at all.
Root cause: Worn ADFLOW valve or bulb one-way valve.
Stethoscope acoustic loss
LowSymptoms: Muffled or absent sound, air leak at the eartips or tubing.
Root cause: Hardened Adscope-lite 609 tubing, missing eartips, or a loose chestpiece.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Cuff bladder and two-tube set
Class Periodic replacementRel. cost $R&R Easy
ADFLOW bulb / air-release valve
Class Periodic replacementRel. cost $R&R Easy
Aneroid gauge / movement (802)
Class Major service partRel. cost $$R&R Fairly easy
Stethoscope eartips and tubing
Class Periodic replacementRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Cuff bladder and two-tube set | Periodic replacement | $ | Easy |
| ADFLOW bulb / air-release valve | Periodic replacement | $ | Easy |
| Aneroid gauge / movement (802) | Major service part | $$ | Fairly easy |
| Stethoscope eartips and tubing | Periodic replacement | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Gauge suspected inaccurate
- Check the needle rests at zero.
- Tee to a calibrated reference manometer; compare at 60, 150, 250 mmHg.
- Replace the gauge if error exceeds +/-3 mmHg.
- Re-verify against the reference.
- Tag with the calibration date.
Symptom: Cuff will not hold pressure
- Inflate to ~200 mmHg, valve closed, watch the gauge.
- Steady fall = leak; check bladder, two-tube set, bulb valves, connector.
- Replace the leaking part.
- Confirm the ADFLOW valve seats cleanly.
- Re-test the pressure hold.
Technical Specs
- Sphyg Type:
- Pro's Combo
- Gauge:
- 802
- Gauge Warranty:
- Lifetime
- Sphyg Accuracy:
- +/-3mmHg @ 50ºF(10ºC) - 104ºF(40ºC)
- Storage Temp:
- -4ºF (-20ºC) - 131ºF(55ºC)
- Valve Type:
- ADFLOW
- Number of tubes:
- 2 Tubes
- Cuff type:
- ADCUFF
- Cuff size:
- Adult
- Cuff Range:
- 23-40cm
- Inflation Warranty:
- 3 Year
- Cuff color:
- Burgundy
- Zipper / Storage case:
- 888BD
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
