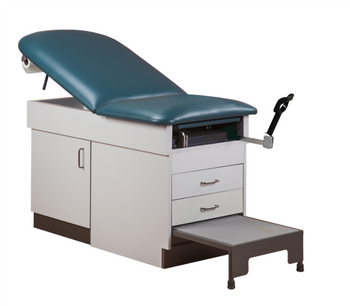

DRE Patient Exam Table
DRE · Model Patient Exam Table
Durable vinyl upholstery over 2-inch firm, supportive foam padding. Patient area measures 27 inches in width for patient comfort. Air-spring adjustable backrest allows clinicians to easily adjust the table without back strain. Coated, two position adjustable stirrups can be quickly pulled out or tucked away. Padded, pull-out leg rest on steel track. Large storage compartment with one shelf is accessible from both sides. Easy care all-laminate base with chip resistant edges. Includes two Euro style drawers with all-steel slides. Constructed with plywood and laminate panels that are California CARB I compliant. Top sections are easily replaceable in the field. Adjustable feet for leveling the table on stable surfaces.
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Backrest will not hold position
MediumSymptoms: Adjustable backrest drops or is heavy to raise.
Root cause: Worn gas spring or a failed ratchet.
Leg / stirrup section fault
MediumSymptoms: Pull-out leg extension or stirrups will not lock or glide.
Root cause: Worn section pivot or stirrup hardware.
Upholstery damage
LowSymptoms: Torn or cracked vinyl, exposed foam.
Root cause: Wear, sharps, or aggressive cleaning.
Base / caster instability
LowSymptoms: Table rocks, a caster wobbles or will not lock.
Root cause: Loose base fasteners or a worn caster.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Backrest gas spring
Class Major service partRel. cost $R&R Moderate
Section pivot / stirrup hardware
Class Major service partRel. cost $R&R Fairly easy
Upholstery set
Class Major service partRel. cost $$R&R Fairly easy
Caster set
Class Major service partRel. cost $R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Backrest gas spring | Major service part | $ | Moderate |
| Section pivot / stirrup hardware | Major service part | $ | Fairly easy |
| Upholstery set | Major service part | $$ | Fairly easy |
| Caster set | Major service part | $ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Backrest will not hold
- Note how fast it drops and under what load.
- Inspect the gas spring and its mounts.
- Replace the gas spring.
- Confirm the backrest holds through its range.
- Check all section pivot hardware is tight.
Symptom: Table rocks or a caster is loose
- Identify the loose caster or fastener.
- Re-torque the base hardware.
- Replace a worn caster.
- Confirm the table is stable and the casters lock.
- Check the leg / stirrup sections lock.
Technical Specs
- Height
- 31 in
- Length
- 58 in
- Patient Weight Capacity
- 400 lbs
- Width
- 28.5 in
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
