Skytron Optik View 55

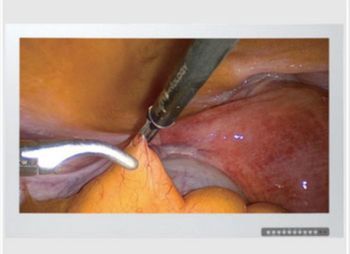

Skytron · Model Optik View 55
55” viewing area 1920 x 1080 resolution Accommodates major source types: DVI, HDMI, VGA, Display Port, SDI, analog RGB, AV signal, color and S-video Picture-in-Picture and Picture-and-Picture formats available 1PX1 liquid resistant front panel Fanless design promotes a sterile surgical environment Includes remote control 10501103 includes 3G-SDI input and anti-reflective glass
Key tips
- ·When no category-specific guidance fits, default to the manufacturer's own service manual and the general troubleshooting method in the Engineer's Guide.
- ·Run an incoming and annual electrical safety test regardless of how niche the device is.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Display panel fault
HighSymptoms: Dead pixels, backlight failure, or no image at all.
Root cause: LCD/LED panel or backlight driver aging.
Video input / signal fault
MediumSymptoms: No signal, wrong input source, or image artifacts.
Root cause: Input board, cable, or connector fault.
Power supply fault
MediumSymptoms: Won't power on, intermittent shutdown.
Root cause: Internal power supply module aging.
Touch panel / control fault
MediumSymptoms: Unresponsive touch, drifting calibration.
Root cause: Touch overlay or controller board wear.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Display panel / backlight assembly
Class Major service partRel. cost $$$$R&R Difficult
Video input board
Class Major service partRel. cost $$R&R Fairly easy
Touch panel overlay
Class Periodic replacementRel. cost $$R&R Fairly easy
Power supply module
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Display panel / backlight assembly | Major service part | $$$$ | Difficult |
| Video input board | Major service part | $$ | Fairly easy |
| Touch panel overlay | Periodic replacement | $$ | Fairly easy |
| Power supply module | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Follow the manufacturer's PM schedule
- ·Perform incoming and annual electrical safety testing per facility biomedical program
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Display panel fault
- Confirm the presentation - typically dead pixels, backlight failure, or no image at all.
- Check the most likely cause first: lCD/LED panel or backlight driver aging.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the display panel / backlight assembly per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Video input / signal fault
- Confirm the presentation - typically no signal, wrong input source, or image artifacts.
- Check the most likely cause first: input board, cable, or connector fault.
- Inspect the affected subsystem against the manufacturer's inspection checklist.
- If the fault is confirmed and not a field adjustment, service or replace the video input board per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Varies by device - check the unit's own manual for facility placement guidance
