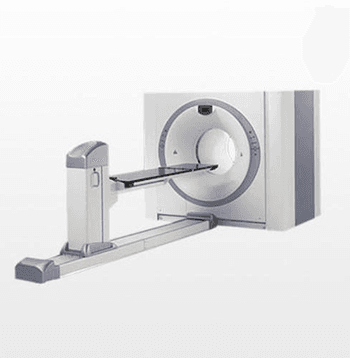

Siemens Biograph 64 PET/CT
Siemens Healthineers · Model Biograph 64 PET/CT
Siemens Biograph 64 TruePoint PET/CT Integrated PET/CT medical imaging system TruePoint PET detectors Straton Z X-ray tube Biograph PHS patient handling assembly PET syngo software Image analysis capabilities DICOM Print DICOM Send Network connectivity CD writer 19-inch LCD flat-screen monitors High-speed CT capabilities Cardiac speed of 0.37 seconds CARE Dose CARE Bolus 3D SSD CAP 3D Volume Extended Field of View (FOV) Basic image fusion Fusion LM Fusion Autoreg Volume rendering CAP3D Editor Combined anatomical and metabolic image information PET/CT imaging for oncology, cardiology, and neurology applications (Generated by AI)
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
PET Detector Crystal Degradation
HighSymptoms: Reduced sensitivity, increased noise in emission images, quantitation drift
Root cause: Radiation damage and aging of lutetium oxysilicate crystals; PMT gain drift
CT X-Ray Tube Overheating
HighSymptoms: Thermal protection fault, reduced scan power, 'tube overtemp' error
Root cause: Inadequate coolant flow, thermistor failure, or RF circuit stress; Straton Z tube stress
Patient Table Motion Failure
MediumSymptoms: Table fails to move, stops mid-position, or error 'table position error'
Root cause: Stepper motor encoder failure, brake drag, or cable harness wear in Biograph PHS assembly
Vaporizer/Anesthetic Gas Leak (if applicable)
MediumSymptoms: Unstable gas flow, low fresh gas readings, safety interlock trips
Root cause: Vaporizer seal desiccation or loose fittings in the gas delivery system
Power Supply Unit (PSU) Fan Failure
MediumSymptoms: PSU overheating warning, intermittent system shutdowns
Root cause: Fan bearing wear, dust accumulation on heatsinks; critical for magnetron and electronics cooling
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
PET Crystal Block Assembly
Factory sealed; requires OEM alignment after replacement
Class Major service partRel. cost $$$$R&R Expert-level
CT X-Ray Tube (Straton Z)
High voltage component; regulated replacement program per Siemens schedule
Class Major service partRel. cost $$$$R&R Expert-level
Patient Table Stepper Motor
Encoder strip cleaning resolves many errors; lubricate guide rails per schedule
Class Periodic replacementRel. cost $$$R&R Moderate
PSU Cooling Fan
Hot-swappable; keep spare for uptime
Class Periodic replacementRel. cost $R&R Easy
Vaporizer Assembly
Check seals; replace if desiccated or cracked
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| PET Crystal Block Assembly Factory sealed; requires OEM alignment after replacement | Major service part | $$$$ | Expert-level |
| CT X-Ray Tube (Straton Z) High voltage component; regulated replacement program per Siemens schedule | Major service part | $$$$ | Expert-level |
| Patient Table Stepper Motor Encoder strip cleaning resolves many errors; lubricate guide rails per schedule | Periodic replacement | $$$ | Moderate |
| PSU Cooling Fan Hot-swappable; keep spare for uptime | Periodic replacement | $ | Easy |
| Vaporizer Assembly Check seals; replace if desiccated or cracked | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: System displays 'PET sensitivity error' and images are noisy
- 1. Run system self-test diagnostic (syngo CT/PT) to confirm sensitivity values outside spec
- 2. Verify PMT high voltage settings via service interface; adjust if within allowable range
- 3. If values remain out of spec, replace PET Crystal Block Assembly - OEM alignment required
Symptom: CT scanner will not generate high voltage, tube error on standby
- 1. Check coolant flow rate and reservoir level; verify pump operation
- 2. Measure thermistor resistance at tube housing; compare to temperature curve
- 3. If coolant and thermistor OK, inspect RF circuit for arcing or component stress; replace CT X-Ray Tube if persistent
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Radiology / Imaging department
- Emergency Department (portable units)
- Operating Room (C-arms)
- Cath lab
- Bedside ICU (portable X-ray)
