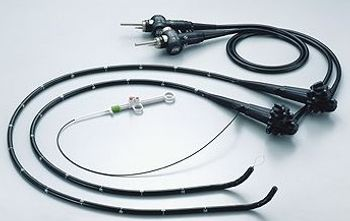

Olympus CF-Q160AL
Olympus · Model CF-Q160AL
• The flexibility of the variable stiffness insertion tube can be adjusted to suit the internal conditions and contours of the colon, simply by turning a knob below the control section. • Superior operability and insertion capability make these all-purpose scopes ideal for routine procedures. • Large display size delivers superior image quality with a sharper, crisper image and life-like color from edge to edge. • When used in combination with our OFP dedicated flushing pump and CV-160 video system center, a clear view is ensured by an auxiliary water jet that removes debris inside the colon at the touch of a switch on the scope. • Extra-wide 140º field of view and extensive 4-way angulation (180º up/down and 160º left/right) enable complete and comprehensive examination of the colon. • 12.8mm outer diameter insertion tube. • 3.7mm diameter channel ensures sufficient suction capability even when an EndoTherapy accessory is in place. • Ergonomically designed grip enhances scope maneuverability while redesigned easy-to-access knobs and user-selectable switches improve operability. • Fully compatible with the CV-160/140. • Scope ID function stores individual scope information and displays it on the monitor to facilitate endoscopy suite management.
Key tips
- ·A failed leak test means the scope does not get reprocessed or used - send it for repair, full stop.
- ·A shortened reprocessing cycle is a real infection-control failure, not a minor deviation - follow AAMI ST91 exactly.
- ·Track light-source lamp-hours against the manufacturer's limit rather than running to failure.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Insertion tube / bending wear
HighSymptoms: Stiff angulation, image artifacts.
Root cause: Repeat flexing / reprocessing.
Leak (water ingress)
HighSymptoms: Fogging, failed leak test.
Root cause: Damaged outer sheath.
Image sensor / CCD fault
HighSymptoms: No/poor image, color error.
Root cause: Sensor or cable failure.
Channel blockage
MediumSymptoms: Poor suction / irrigation.
Root cause: Debris in working channel.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Outer sheath / distal end
Class Periodic replacementRel. cost $$$$R&R Expert-level
Angulation cable / mesh
High-value R&R.
Class Periodic replacementRel. cost $$$$R&R Expert-level
Image sensor module
Class Periodic replacementRel. cost $$$$R&R Expert-level
Working channel liner
Class Periodic replacementRel. cost $$$R&R Difficult
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Outer sheath / distal end | Periodic replacement | $$$$ | Expert-level |
| Angulation cable / mesh High-value R&R. | Periodic replacement | $$$$ | Expert-level |
| Image sensor module | Periodic replacement | $$$$ | Expert-level |
| Working channel liner | Periodic replacement | $$$ | Difficult |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Leak testing before each reprocessing cycle
- ·Scope reprocessing per AAMI ST91
- ·Light source lamp-hour tracking
- ·Annual full PM
Troubleshooting Approach
A structured starting point derived from the failure modes above. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Insertion tube / bending wear
- Confirm the presentation - typically stiff angulation, image artifacts - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: repeat flexing / reprocessing.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the angulation cable / mesh per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Symptom: Image sensor / CCD fault
- Confirm the presentation - typically no/poor image, color error - and note the exact alarm or message and the conditions when it occurs.
- Check the most likely cause first: sensor or cable failure.
- Isolate the affected subsystem using the manufacturer's functional check or self-test, where one is provided.
- If the fault is confirmed and not a field adjustment, service or replace the image sensor module per the manufacturer's service documentation.
- Return the device to service only after the manufacturer's functional and applicable electrical-safety checks pass.
- Record the findings, any parts used, and the verification results in the maintenance history.
Typical Location
Where this class of equipment is typically deployed - general reference, not this unit's own placement record.
- Endoscopy suite / GI lab
- Operating Room
- Bronchoscopy suite
Documents & Manuals
No documents available for this device yet.
