Norland McCue CUBA
Norland · Model McCue CUBA

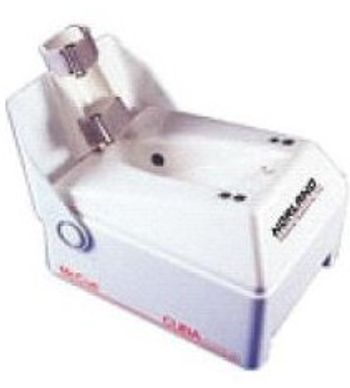

Dry sonometer CooperSurgical and Norland Medical Systems are pleased to present the McCue C.U.B.A. Clinical™ (Contact Ultrasound Bone Analyzer). Never before has assessing a patient's risk of fracture been easier or more cost-effective than with the C.U.B.A. A dry ultrasound sonometer, the C.U.B.A. Clinical is designed to perform a heel measurement in less than a minute. The world's first dry ultrasound system (no water bath). Patented internal electronic phantom for simple calibration.
Key tips
- ·Never bypass a radiation interlock to "just get the image" - this is one of the few true zero-tolerance rules in BMET work.
- ·Trend image-quality phantom results over time - drift shows up before an outright failure does.
- ·Portable/mobile units take real physical abuse from transport - check wheel locks and cable strain reliefs more often than fixed units.
Typical Failure Modes
Failure patterns typical of this equipment class - general BMET reference, not verified against this exact unit's own service history unless flagged. Severity is a category-level estimate.
Transducer element failure
MediumSymptoms: Dropout, dead elements, image banding.
Root cause: Element delamination or cable damage from repeated use.
Transducer cable / connector wear
MediumSymptoms: Intermittent image loss, connector-wiggle artifact.
Root cause: Repeated flexing and connector strain.
Recon / system software hang
LowSymptoms: Frozen console, acquisition timeout.
Root cause: Workstation or storage degradation.
Display panel degradation
LowSymptoms: Dim image, color shift, dead pixels.
Root cause: Backlight or LCD panel aging.
Serviceable Parts & Consumables
The parts a BMET typically services on this class of equipment. Service class and relative cost are general engineering estimates for the category, not figures from this unit's documentation. Part numbers appear only when pulled from this unit's own service manual. Always confirm intervals and pricing against the manufacturer.
Workstation / GPU
Class Periodic replacementRel. cost $$$R&R Difficult
Display panel
Class Major service partRel. cost $$R&R Moderate
Ultrasound transducer / probe
Handle with care; most-replaced probe assembly.
Class Periodic replacementRel. cost $$$$R&R Moderate
Transducer cable assembly
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Workstation / GPU | Periodic replacement | $$$ | Difficult |
| Display panel | Major service part | $$ | Moderate |
| Ultrasound transducer / probe Handle with care; most-replaced probe assembly. | Periodic replacement | $$$$ | Moderate |
| Transducer cable assembly | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
PM Checklist
Preventive-maintenance tasks typical of this equipment class. Perform to the manufacturer's procedure and your facility's policy - this is general reference, not a schedule for this specific unit.
- ·Daily QC per modality: image-quality phantom test
- ·Tube and detector inspection
- ·Annual state-required radiation safety survey
- ·Vendor-scheduled preventive maintenance
