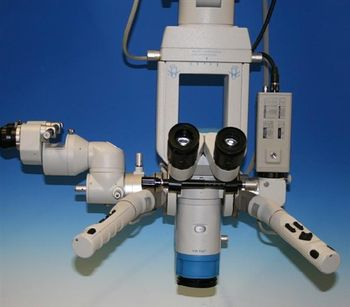

Moller-Wedel VM 900
Moller-Wedel · Model VM 900
Motorized zoom, motorized focus, and motorized focal adjustment One touch auto balancing Integral beam splitter Multi Axis binocular observation system Electro magnetic brake system Internal fused power supply 300watt Xenon Fiber optic illumination Pistol grip control.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Illumination failure or dim / uneven light
HighSymptoms: No or dim light, sudden loss during use.
Root cause: Lamp at end of life, a lamp-turret fault, or a fibre-optic cable break.
Suspension / swing arm drift
HighSymptoms: Head drifts or will not stay positioned after an accessory change.
Root cause: Arm not re-balanced, or worn magnetic brakes.
Motorised zoom / focus fault
MediumSymptoms: Zoom or focus will not run or is erratic.
Root cause: Zoom/focus motor, foot control, or cabling.
Optics contamination
LowSymptoms: Hazy or low-contrast image, spots in the field.
Root cause: Dust or fingerprints on the objective / oculars, or condensation.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Illumination lamp
Class Frequent wear itemRel. cost $R&R Fairly easy
Fibre-optic light cable
Class Periodic replacementRel. cost $$R&R Fairly easy
Swing-arm magnetic brake / balance assembly
Class Major service partRel. cost $$$R&R Difficult
Zoom / focus motor assembly
Class Major service partRel. cost $$$R&R Difficult
Objective protective glass
Class Periodic replacementRel. cost $R&R Easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Illumination lamp | Frequent wear item | $ | Fairly easy |
| Fibre-optic light cable | Periodic replacement | $$ | Fairly easy |
| Swing-arm magnetic brake / balance assembly | Major service part | $$$ | Difficult |
| Zoom / focus motor assembly | Major service part | $$$ | Difficult |
| Objective protective glass | Periodic replacement | $ | Easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: No or dim light
- Unplug before touching the lamp; let it cool and replace it.
- Check the fibre-optic cable for a break and the lamp-turret alignment.
- Check the mains fuse (unplug first).
- Confirm the lamp is seated.
- Verify even, full-brightness illumination.
Symptom: Head will not hold position
- Re-balance the swing arm for the current accessory load.
- Adjust the magnetic brakes.
- Replace the brake / balance assembly if it will not hold.
- Return the arm to transport position when moving the stand.
- Confirm the head stays put across the working range.
Technical Specs
- Field of view
- 150 to 500 mm
- Focusing
- Motorized
