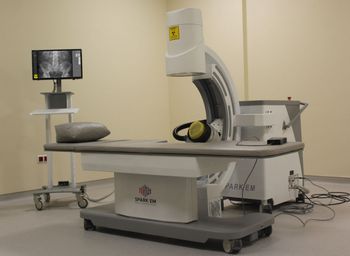

Inceler Medikal Spark EM ESWL
Inceler Medikal · Model Spark EM ESWL
Energy Source (Working Principle) Electro – Magnetic system Focusing Acoustic lens Patient Touch Membrane (Dry Touch) Localization Fluoroscopy and/or Ultrasound Focal Penetration 140 mm Unit control Hand Control Unit Focal pressure up to 700 Bar Head Life 3 Million Operating Voltage Variable 7 – 21 KV Device Sturcture Semi Compact(ESWL & Fluoroscopy) Main Unit Dimensions 100 cm x 200 cm X 170 cm Water System Closed system with water cushion touch. Pressure regulation and 9 lt. Water capacity Main Body Weight 285 kg Height 1750 mm Length 1600 mm Width 620 mm.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Weak or no shockwave / poor stone fragmentation
HighSymptoms: Low energy at the focal point, stones not breaking, long treatment times.
Root cause: Electromagnetic shock-head coil / membrane at end of life, degraded coupling (water cushion air or leak), or a HV generator fault.
Localisation / imaging fault
HighSymptoms: Cannot target the stone, fluoroscopy or ultrasound localisation off, focal point misaligned.
Root cause: C-arm / X-ray source or image intensifier, or the integrated ultrasound localiser, or focal-point calibration drift.
Water / coupling-cushion system fault
MediumSymptoms: Air in the cushion, leaks, poor patient coupling, degassing not working.
Root cause: Degassing unit, cushion membrane, or the fill/drain circuit.
Therapy table / positioning drive fault
MediumSymptoms: Table X/Y/Z or tilt will not move, positioning error.
Root cause: Positioning drive motor or control fault.
HV generator / trigger fault
HighSymptoms: No or erratic pulses, HV or charge alarm.
Root cause: HV supply, capacitor, or trigger circuit.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Electromagnetic shock-head (coil / membrane)
Pulse-count limited; focal-point recalibration required after replacement.
Class Periodic replacementRel. cost $$$$R&R Expert-level
Coupling-cushion membrane
Class Frequent wear itemRel. cost $$R&R Moderate
Water degassing / conditioning unit
Class Periodic replacementRel. cost $$$R&R Difficult
X-ray tube / image intensifier
Class Major service partRel. cost $$$$R&R Expert-level
HV generator components (capacitor / trigger board)
Class Major service partRel. cost $$$R&R Expert-level
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Electromagnetic shock-head (coil / membrane) Pulse-count limited; focal-point recalibration required after replacement. | Periodic replacement | $$$$ | Expert-level |
| Coupling-cushion membrane | Frequent wear item | $$ | Moderate |
| Water degassing / conditioning unit | Periodic replacement | $$$ | Difficult |
| X-ray tube / image intensifier | Major service part | $$$$ | Expert-level |
| HV generator components (capacitor / trigger board) | Major service part | $$$ | Expert-level |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Weak or no fragmentation
- Check the shock-head pulse count against its rated life.
- Fully degas and fill the coupling cushion, removing all air, and confirm good patient contact.
- Verify the HV generator charges and triggers.
- Confirm the focal point aligns with the localisation crosshair on a test target.
- Escalate a confirmed shock-head or HV fault to the manufacturer; recalibrate the focal point after any shock-head work.
Symptom: Cannot localise the stone
- Check the imaging chain (fluoroscopy output / detector, or the ultrasound localiser).
- Verify the focal-point calibration against the imaging crosshair.
- Check the therapy-table positioning drives move to command.
- Recalibrate the isocentre / focal point per the service manual.
- Coordinate with the urologist before further clinical use.
