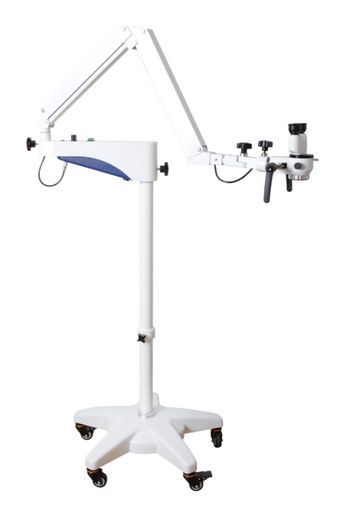

DRE Compass 101
DRE · Model Compass 101
Three step magnification system Built-in green and yellow filters Two-part column fitted on a five-star stand base Straight observation Two-part arm for easy maneuvering 20,000 hours LED lifespan 50,000 LUX objective illumination.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
LED illuminator failure or dim / uneven light
MediumSymptoms: No or dim light, colour shift, flicker, uneven field.
Root cause: Failed LED module or its driver / power supply.
Balanced arm drift
HighSymptoms: Scope head drifts or sags, will not stay positioned, tension control ineffective.
Root cause: Worn counterbalance spring or friction brakes on the support arm.
Magnification changer fault
MediumSymptoms: Step magnification will not click through cleanly, image jumps or blurs at a step.
Root cause: Worn detent or a decentred lens in the magnification drum.
Fine-focus drift
LowSymptoms: Cannot hold focus, focus creeps during use.
Root cause: Worn fine-focus mechanism.
Integrated camera / video fault
LowSymptoms: No video output, poor image, will not white-balance.
Root cause: Camera module or video cable fault.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
LED illuminator module
Class Major service partRel. cost $$R&R Moderate
LED driver / power supply
Class Major service partRel. cost $R&R Moderate
Arm counterbalance / brake kit
Class Major service partRel. cost $$$R&R Difficult
Magnification changer assembly
Class Major service partRel. cost $$$R&R Difficult
Integrated video camera
Class Major service partRel. cost $$$R&R Moderate
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| LED illuminator module | Major service part | $$ | Moderate |
| LED driver / power supply | Major service part | $ | Moderate |
| Arm counterbalance / brake kit | Major service part | $$$ | Difficult |
| Magnification changer assembly | Major service part | $$$ | Difficult |
| Integrated video camera | Major service part | $$$ | Moderate |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Illuminator out or dim
- Confirm mains power and the illuminator switch.
- Check the LED driver output.
- Replace the driver if the LED is unpowered.
- Replace the LED module for a failed emitter.
- Verify even, full-brightness illumination and correct colour temperature.
Symptom: Head will not hold position
- Balance the head for the fitted accessories (camera, tube) per the manual.
- Adjust the arm tension controls.
- Replace the counterbalance spring / friction brakes if adjustment does not hold.
- Cycle the arm and confirm it holds at several positions.
- Re-check after any accessory change.
