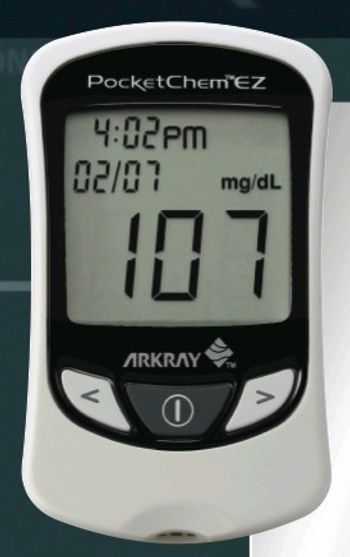

ARKRAY USA PocketChem EZ
ARKRAY USA · Model PocketChem EZ
Fast. Results in 10 seconds. PocketChem EZ Test Strip wicks blood sample into the end of test strip Comfortable. Small blood sample, (1 µL), less pain. Choice of palm or fingertip testing Convenient. 2-step test. Automatic on/off. Code chip calibration. Large, easy-to-read display. Double dosing - Blood can be reapplied within 10 seconds if the first drop is too small. Fill detection Complete. Biosensor technology. Plasma referenced results. 14-day and 30-day averaging. 250 test result memory with time and date stamp. Wide test range (20 to 600 mg/dL). Downloading capabilities.
Typical Failure Modes
Compiled for this model from its own documentation and established engineering knowledge for this equipment class - not from a verified service record. Confirm against the manufacturer's service manual.
Result / QC failure
HighSymptoms: Result flagged or biased, QC control out of range, strip / cartridge error code.
Root cause: Expired or mishandled strips / cartridges, a temperature / hematocrit interference, or an optics / electrode fault.
Strip / cartridge port fault
MediumSymptoms: Strip not detected, error on insertion, intermittent contact.
Root cause: Contaminated or worn strip-port contacts / optics.
Will not power on / battery fault
MediumSymptoms: Dead unit, short battery life, will not charge.
Root cause: Depleted or aged battery.
Barcode / connectivity fault
LowSymptoms: Operator / lot barcode will not scan, results not sent to the docking / LIS.
Root cause: Barcode reader or the docking-station / wireless link.
Display / button fault
LowSymptoms: Missing segments, unresponsive buttons.
Root cause: Display or keypad fault.
Serviceable Parts & Consumables
Serviceable items for this model, compiled from its documentation and engineering knowledge for this equipment class. Service class and relative cost are estimates, not manufacturer figures; no part numbers are given. Confirm intervals and pricing against the manufacturer.
Test strips / cartridges
Class Frequent wear itemRel. cost $$R&R Easy
QC control solutions
Class Frequent wear itemRel. cost $R&R Easy
Battery
Class Frequent wear itemRel. cost $R&R Easy
Strip-port contacts / optics module
Class Periodic replacementRel. cost $$R&R Moderate
Docking station / barcode reader
Class Periodic replacementRel. cost $$R&R Fairly easy
| Part | Service class | Relative cost | R&R difficulty |
|---|---|---|---|
| Test strips / cartridges | Frequent wear item | $$ | Easy |
| QC control solutions | Frequent wear item | $ | Easy |
| Battery | Frequent wear item | $ | Easy |
| Strip-port contacts / optics module | Periodic replacement | $$ | Moderate |
| Docking station / barcode reader | Periodic replacement | $$ | Fairly easy |
Relative cost: $ lowest · $$$$ highest service-part cost for this equipment class. Not a price.
Troubleshooting Approach
A starting sequence for this model, compiled from its documentation and engineering knowledge for this equipment class. Follow the manufacturer's service documentation for the actual procedure.
Symptom: Result or QC failure
- Repeat with a fresh strip / cartridge from a correctly stored, in-date vial.
- Run the QC control solutions at each level.
- Confirm the meter is coded / calibrated to the current strip lot.
- Clean the strip port per the manual.
- Quarantine the strip lot if QC fails; replace the meter if QC still fails with good strips.
Symptom: Strip not detected
- Inspect and clean the strip-port contacts / optics.
- Try several strips from a fresh vial.
- Check for physical damage to the port.
- Replace the battery.
- Replace the meter if it will not read good strips.
